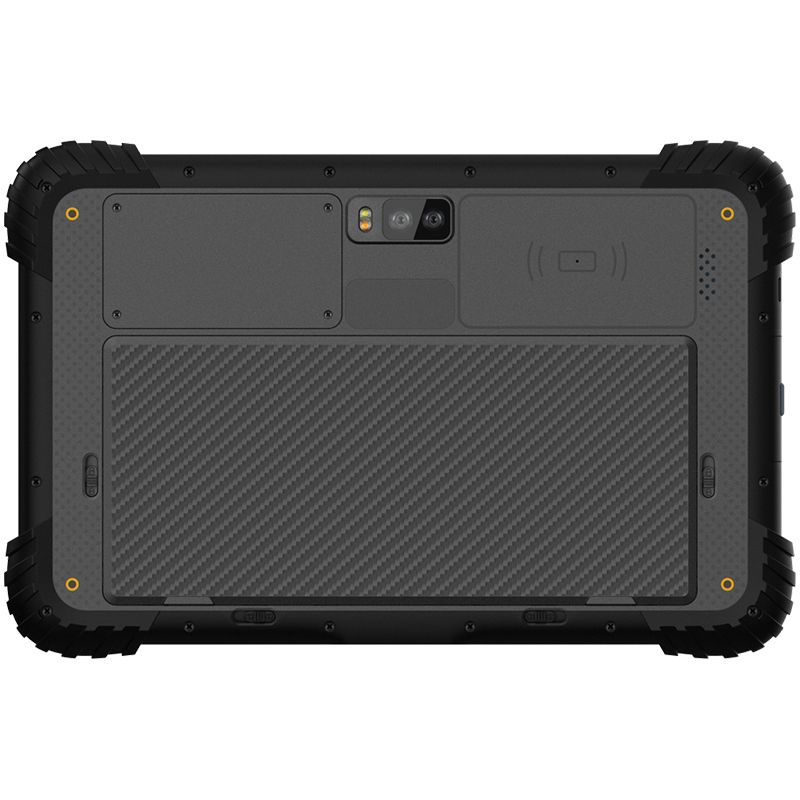

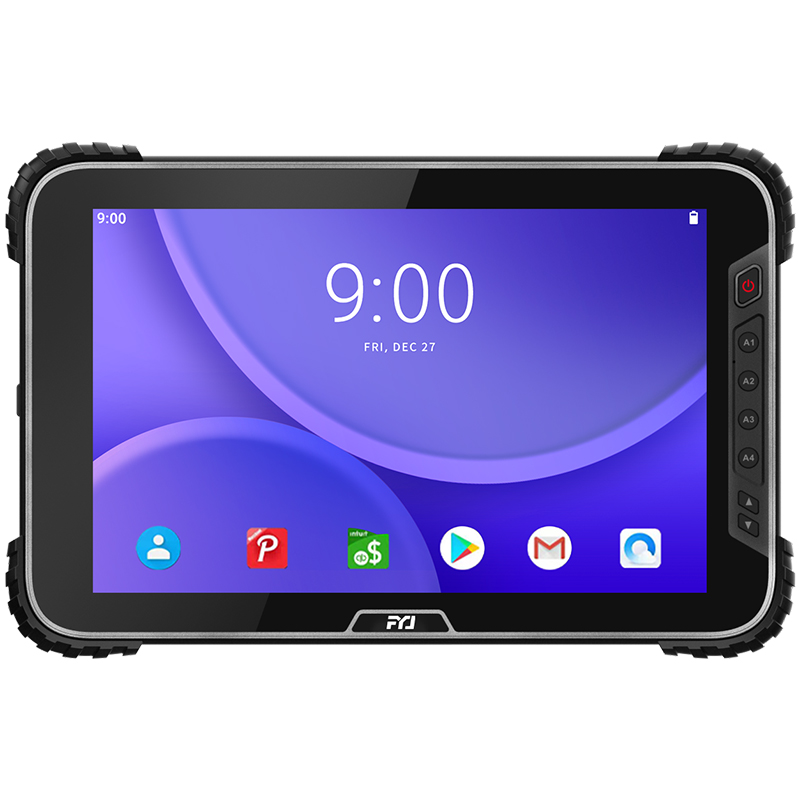

The F9828 Rugged Industrial Tablet is equipped with a Snapdragon 6-core processor, IP67 certification, and 1.2-meter drop resistance, making it highly durable in extreme environments ranging from -40°C to 70°C. Its 11000mAh fast-charging battery and professional barcode scanning engine ensure seamless productivity in manufacturing, logistics, and harsh industrial operations. The 10-inch high-brightness glove-compatible screen enhances usability, while its rugged design guarantees reliability and efficiency for demanding workflows.
Model NO. :
F9828CUP :
8-core CPU,2.2GHzOperatng System :
Android 14 (certified by GMS)Display :
10.95-inch, 1200(H)X1920(W) FHD+, industrial-grade IPS HD displayMemory :
6GB / 8GB RAM 128GB / 256GB ROMPower :
Removable battery 10000mAh, support 18W fast chargingWeight :
649g(including battery)Drop Specifications :
3.9 ft. /1.2 m drops to concreteSealing :
IP67
| Physical Parameters | |
| Dimension | 157(L)*260(W)*12(T) mm |
| Weight | 649g (including battery) |
| Battery | Removable battery 10000mAh, support 18W fast charging |
| Display | 10.95-inch, 1200(H)*1920(W) FHD+, industrial-grade IPS HD display |
| Expansion Slot | MicroSD card, support SDHC, SDXC, up to 512GB |
| Voice and Audio | 2W ultra-linear speaker, earpiece, dual microphone (support noise cancellation), support Type-C headset |
| Front Keyboard | On-screen keyboard and enterprise keyboard |
| Side Keyboard | 7 programmable buttons: 2 dedicated scanning buttons, power button volume up/down press chain, 2 customizable buttons |
| Performance Parameters | |
| CPU | 8-core, 2.2GHz, 4nm |
| Storage | 6/8GB RAM,128/256GB ROM |
| Operating system | Android 14 (GMS certified) |
| User environment | |
| Working temperature | 20°C to +50°C |
| Storage temperature | -40°C to +70°C |
| Sealing class | IP67 |
| Drop Specification | Withstand multiple drops from a height of 1.2m onto a concrete floor. |
| Wireless Wide Area Network | |
| Radio Frequency Bands |
TDD-LTE(B34/B38/839/840/841)FDD-LTE(B1/B2/B3/84/B5/B7/B8/B12/B13/B17/B19/B20/B25/B26/B28A/B28B/B66/B71) WCDMA (B1/B2/B4/B5/B6/B8/B19) TD-SCDMA(B34/B39) CDMA2000 1xEV-DO ReV.A BCO(800MHz) CDMA 1x: BCO GSM/EDGE/GPRS(850/900/1800/1900) |
| GPS | |
| Positioning System | GPS-L1 supports A-GPS, Glonass, BeiDou,Galileo, QZSS, SBAS |
| Wireless LAN | |
| Wireless Connectivity | IEEE 802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v/w (2.4G/5G Dual Band WIFI) |
| Fast Roaming | Supports 802.11r fast roaming |
| Data acquisition | |
| Scanning | ME5066/SE4710/N6703 and other professional 2D scanning engines |
| NFC | Supports ISO15693, ISO14443A/B, MIFARE (including Mifare S50, Mifare S70, Mifare Ultralight, Mifare Pro, Mifare Desfire) and FeliCa cards |
| Camera |
Front - 5MP;f/2.4 aperture Rear - 13-megapixel autofocus; supports PDAF phase focus; f/2.2 aperture; flash LED generates balanced white light; supports flashlight mode. |
| Wireless PAN | |
| Bluetooth | Bluetooth BT5.2+BR/EDR+BLE, support WIFI coexistence, support Bluetooth automatic reconnection |
| Communication distance | >10m |
The F9828 Rugged Industrial Tablet is equipped with a Snapdragon 6-core processor, IP67 certification, and 1.2-meter drop resistance, making it highly durable in extreme environments ranging from -40°C to 70°C. Its 11000mAh fast-charging battery and professional barcode scanning engine ensure seamless productivity in manufacturing, logistics, and harsh industrial operations. The 10-inch high-brightness glove-compatible screen enhances usability, while its rugged design guarantees reliability and efficiency for demanding workflows.
