Model NO. :
F9830CPU :
CPU Octa Core, 2.0GHz; 2XA75+6xA55or 4xA53+4xA53Operatng System :
Android 14Display :
4 inch, resolution 800*480, IPSMemory :
RAM:2GB/4GB Flash:32GB/64GBPower :
5000 mAh,RemovableWeight :
279g(With battery)Drop Specifications :
1.5m steel floor fell 30 times; 1.8m steel floor fell 60 times(with silicone sleeve); 0.5m steel plate falls 2000 times; 0.5m steel plate roller 3000 times(with silicone sleeve)Sealing :
IP65

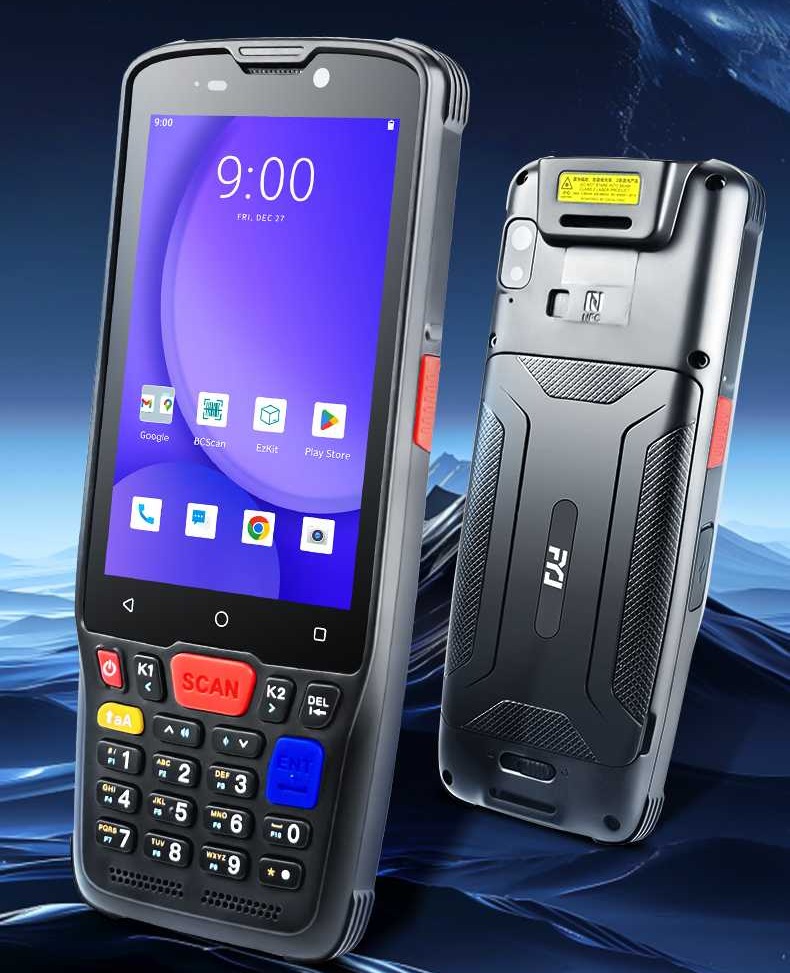

F9830 SERIES – Speed Redefined
The F9830 Mobile Computer redefines efficiency with its ultra-fast scanning capabilities, achieving 1D code reads in <30ms and 2D codes in <60ms.
Built for demanding environments like warehouses and retail, its durable design withstands rigorous daily use while maintaining peak performance.
Integrated with Google Play Store, users can seamlessly access KScan and EMA apps for real-time inventory management.
The intuitive interface, featuring a high-contrast display, ensures clarity even in low-light conditions.
Whether scanning pallets or processing transactions, the F9830 delivers unmatched speed and reliability, making it ideal for logistics and retail professionals who prioritize Android-compatible productivity.

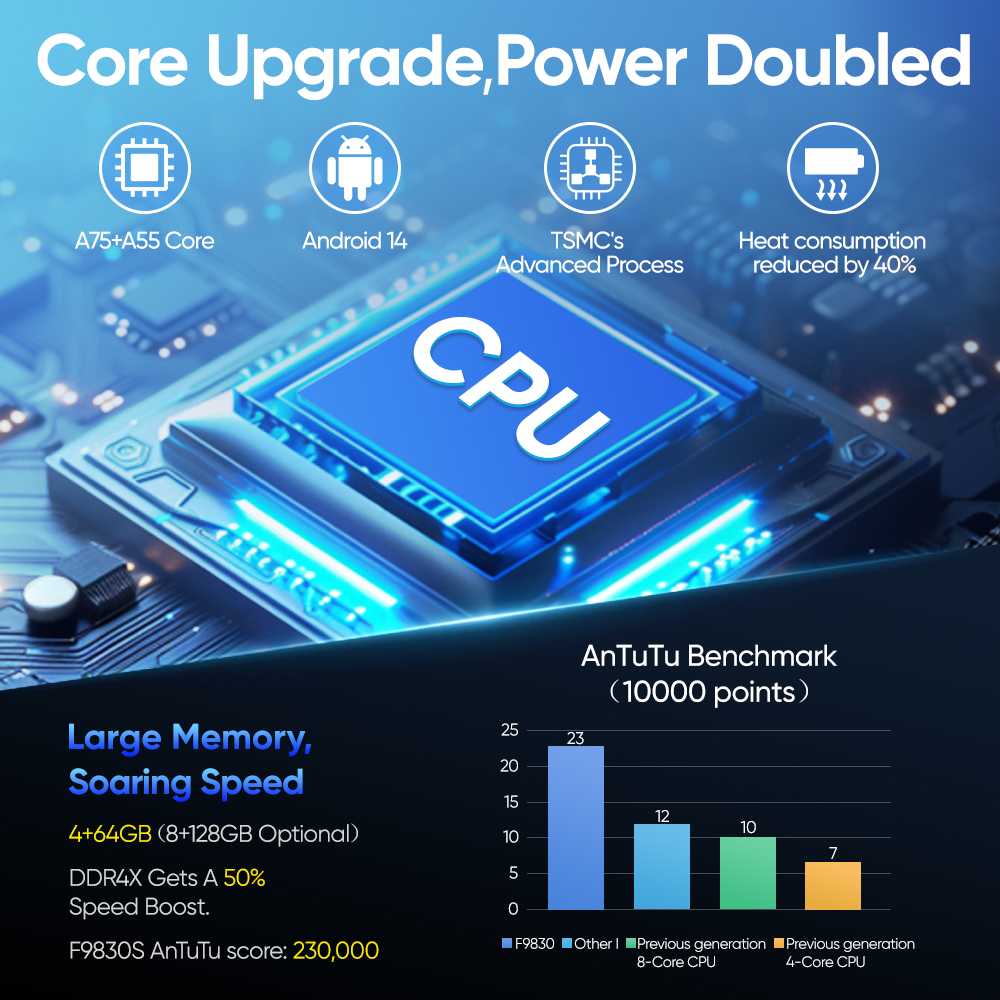

Core Power & Performance
Powered by an upgraded AT5+A55 chipset and Android 14, the F9830 boasts double the processing power of its predecessors. With 4+64GB base memory (expandable to 8+128GB), DDR4X technology accelerates data workflows by 50%, achieving a staggering 230,000 AnTuTu score. TSMC’s advanced process reduces heat by 40%, ensuring sustained performance during extended shifts. Perfect for logistics hubs or manufacturing floors, this high-speed mobile computer handles multitasking effortlessly—from scanning barcodes to syncing cloud data. Its 8-core CPU outperforms older 4-core models, making it a future-proof choice for businesses needing scalable memory and robust computing.

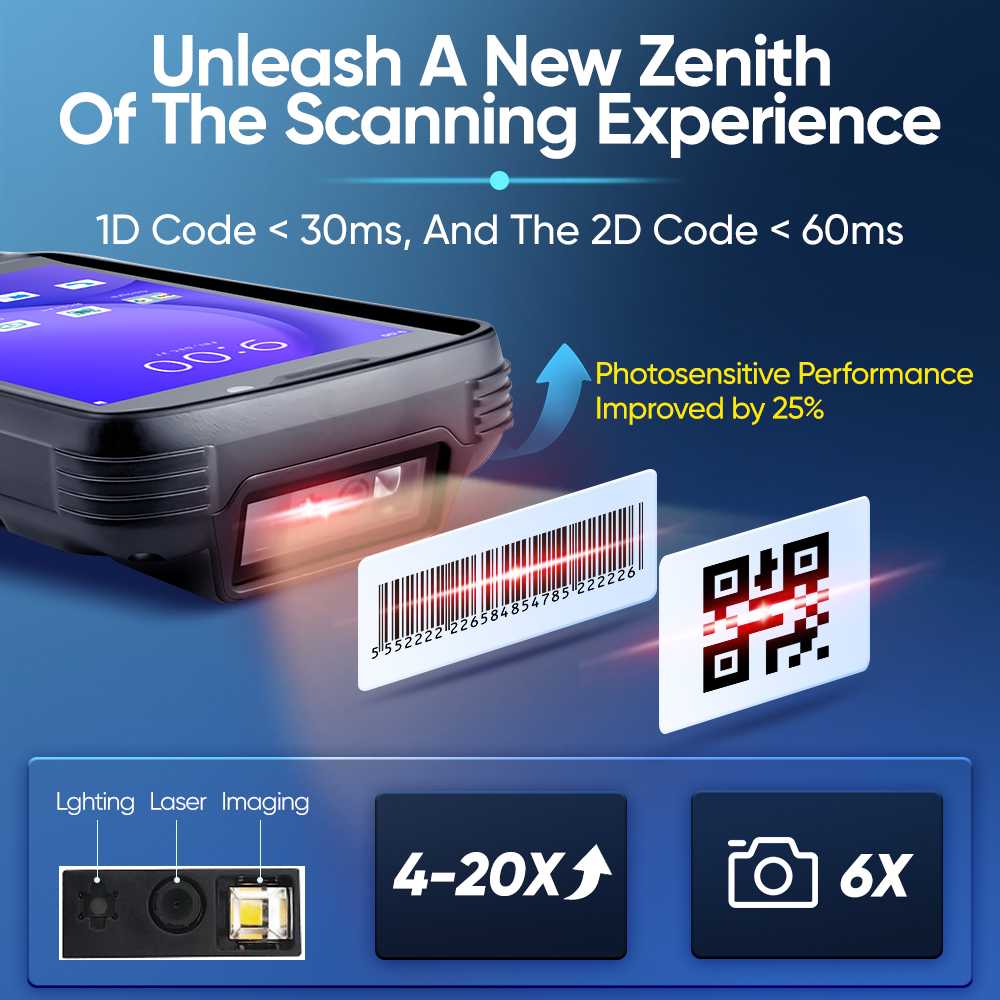

Precision Scanning Reinvented
Experience lightning-fast scanning with the F9830’s 25% improved photosensitive performance.
Engineered for accuracy, it captures damaged or poorly printed codes effortlessly, ideal for healthcare settings where quick patient ID scans are critical.
The self-developed ISP algorithm enhances image clarity, outperforming standard Android ISPs by 6x.
Coupled with laser imaging, it ensures reliable reads in dimly lit warehouses or outdoor delivery zones.
For industries demanding precision—pharmaceuticals, e-commerce, or aviation—the F9830 sets a new benchmark in error-free scanning efficiency.

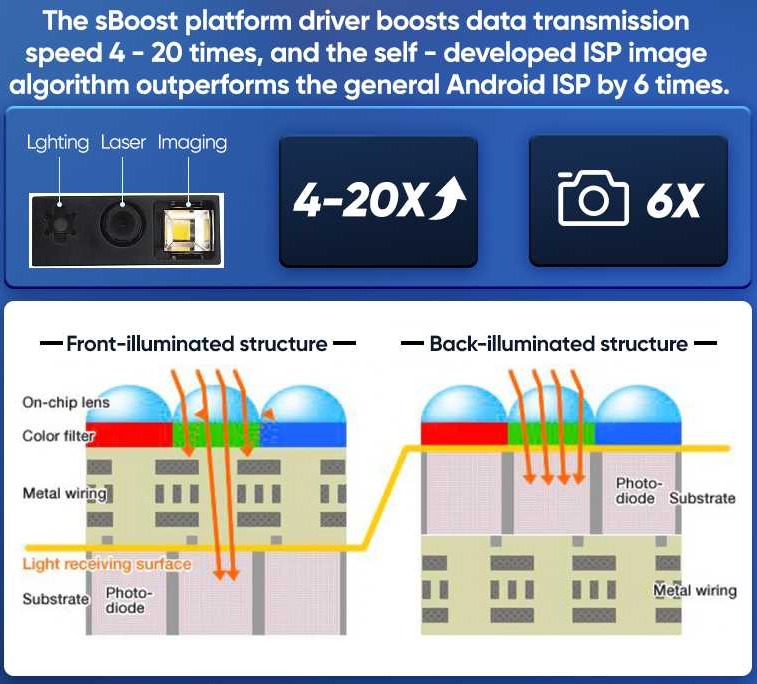

Speed & Imaging Breakthroughs
The F9830’s sBoost platform drives 4–20x faster data transmission, while its proprietary ISP algorithm processes images 6x quicker than competitors.
A back-illuminated sensor structure maximizes light intake, achieving scan speeds of 13ms (1D) and 22ms (2D)—outpacing industry averages by 50%.
Visualized benchmarks show the F9830s dominating rivals like the F9830 (30ms) and F9830s (25ms).
For automotive assembly lines or food distribution centers, this high-efficiency scanner minimizes downtime, ensuring rapid inventory turnover and seamless supply chain operations.

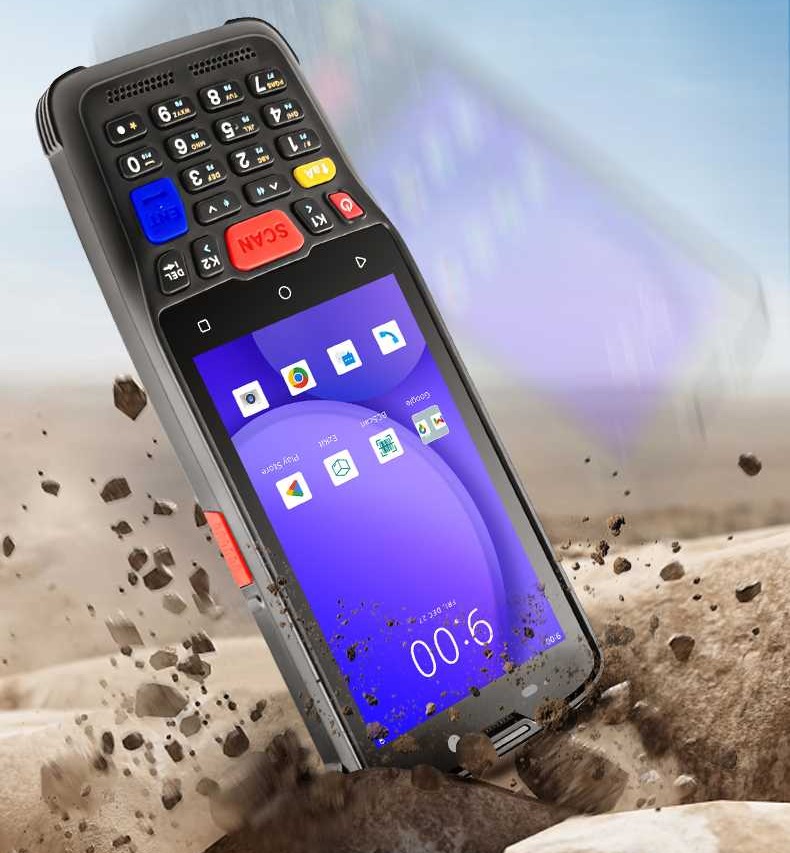

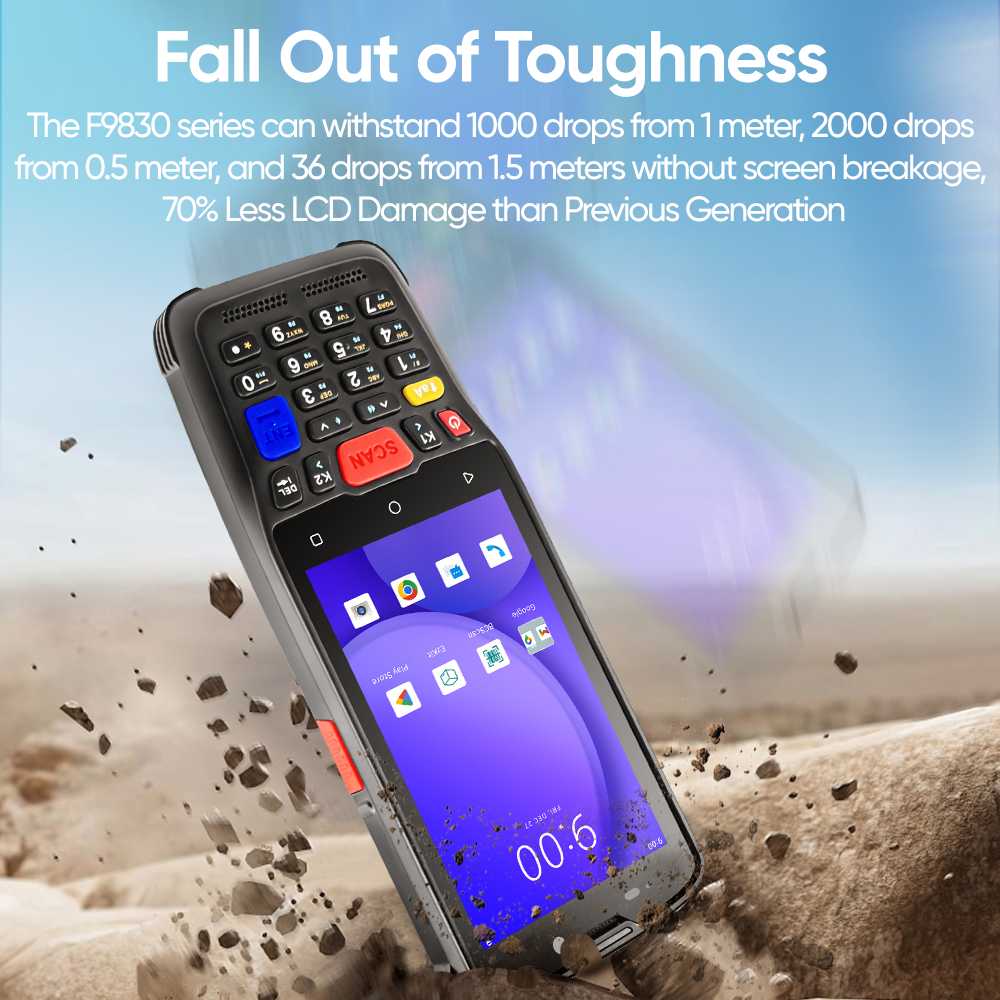

Unmatched Durability
Engineered for toughness, the F9830 survives 1,000 drops from 1m and 36 drops from 1.5m—70% fewer LCD damages than previous models.
Its shock-absorbent corners and 1.1mm Panda Glass shield against impacts in rugged environments like construction sites or outdoor logistics yards.
Reinforced with a metal middle frame and PC+GF casing, it thrives in extreme temperatures and dusty conditions.
For industries where devices face constant abuse, this drop-resistant mobile computer guarantees longevity without compromising performance.

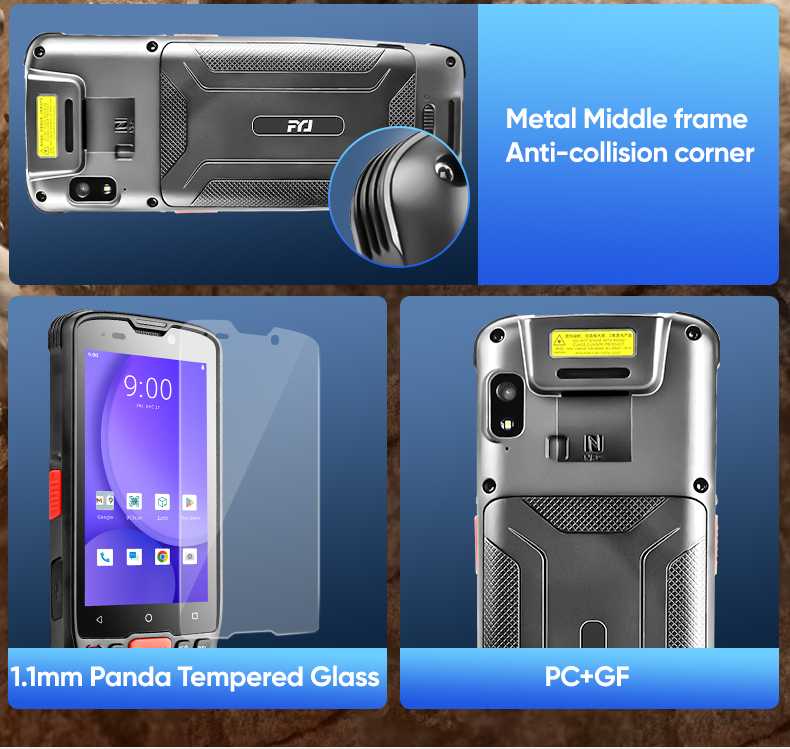

Robust Design Details
The F9830 combines a metal-reinforced chassis with anti-collision corners for ultimate protection.
Its 1.1mm tempered glass screen resists scratches and cracks, while the lightweight PC+GF body ensures portability.
Designed for field technicians or warehouse staff, the ergonomic build reduces fatigue during extended use.
Whether mounted on forklifts or carried in tool belts, this industrial-grade device balances durability with user comfort.

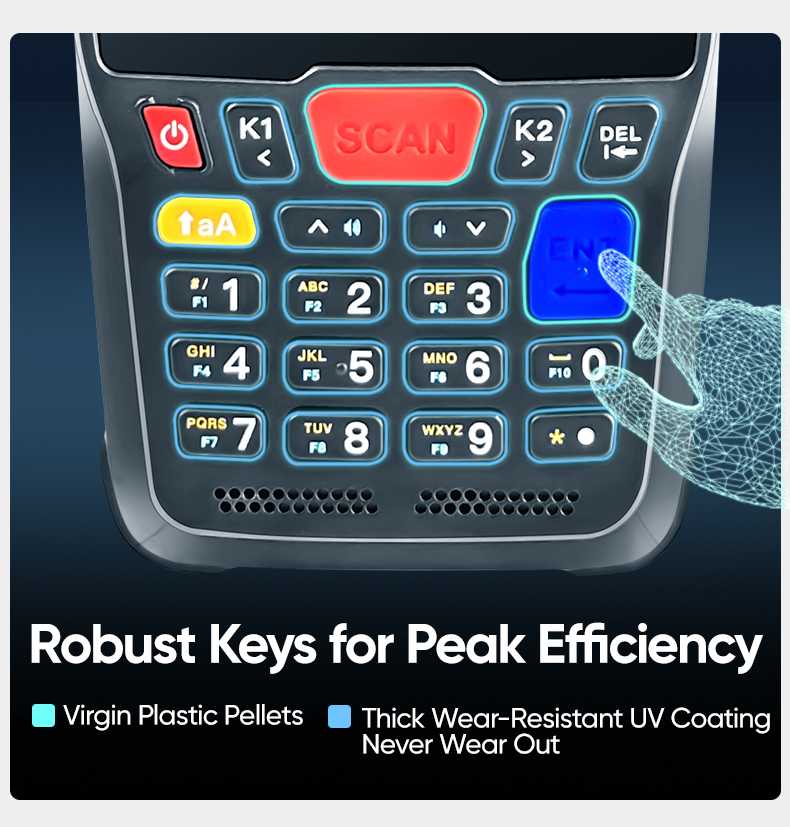

fficiency-Driven Keypad
Featuring wear-resistant UV-coated keys, the F9830’s tactile keypad withstands millions of presses.
Virgin plastic pellets ensure longevity, while backlit buttons enable night shifts in dimly lit warehouses.
Programmable shortcuts (e.g., SCAN, DEL) streamline tasks like inventory audits or order picking.
The intuitive layout—with dedicated number and function keys—accelerates data entry for retail cashiers or delivery drivers.
Built for all-day productivity, this keyboard is a game-changer for high-volume workflows.

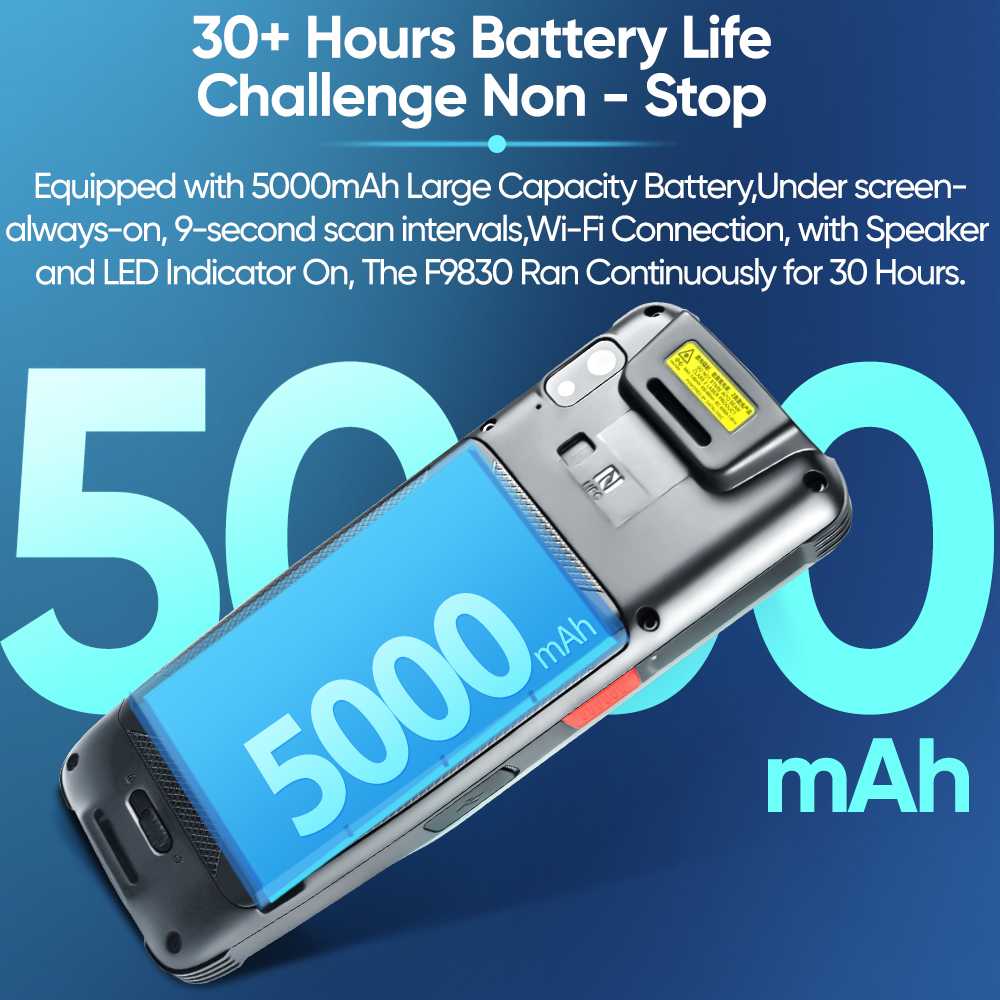

Marathon Battery Life
With a 5000mAh battery, the F9830 operates 30+ hours non-stop—even with Wi-Fi, scanning, and alerts active.
Proprietary low-power tech, including an optimized screen and intelligent lighting control, extends uptime for round-the-clock shifts.
Perfect for cross-country trucking or 24/7 warehouses, it eliminates midday charging.
Advanced acoustic design ensures clear speaker output during alerts, while the LED indicator keeps users informed of battery status.

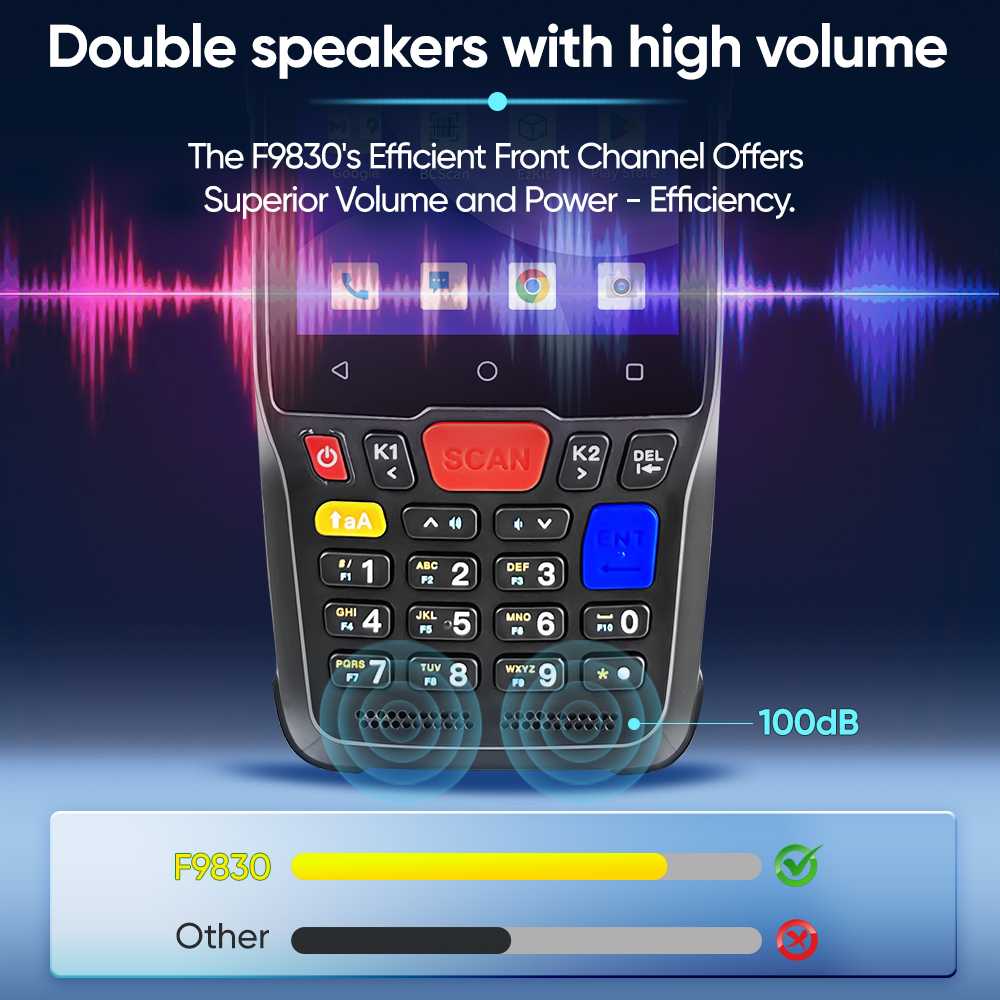

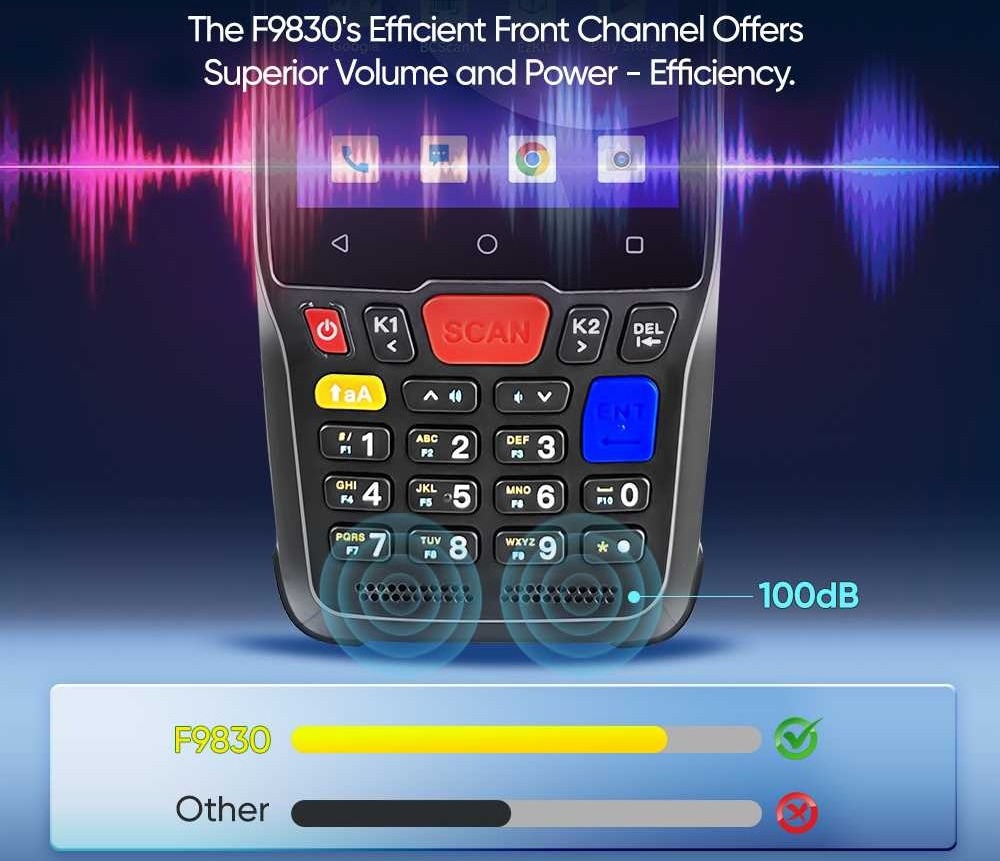

Crystal-Clear Audio
Dual front-channel speakers deliver 100dB volume without distortion, ideal for noisy environments like factory floors or ports.
Efficient power consumption ensures audio clarity without draining the battery.
Customizable alerts for scan confirmations or system errors enhance workflow safety.
Paired with the rugged keypad, this feature set makes the F9830 a top choice for teams needing loud, reliable communication in chaotic settings.
| Technical Specifications | |
| Performance Parameter | |
| CPU | Octa Core, 2.0GHz; 2XA75+6xA55 or 4xA53+4xA53 |
| OS | Android 14 |
| MEMORY |
RAM: 2GB4GB Flash: 32GB/64GB |
| PC Communication |
USB 2.0 Type-C charging data transmission |
| Physical Specifications | |
| Weight | 279g (with battery) |
| LCD |
4.0 inch,800*480.IPS GFF capacilive screen,multi-touch |
| Battery | 5000 mAh， Removable |
| Dimension | 165.86mm*67mm*19.22mm |
| Keypad |
20-key numeric keyboard Left/right scan Back, home, toggle touch keys |
| GPS |
GPS/Glonass/Galileo/Beidou Assisled GPS |
| Camera |
Main camera: Auto focus 8Mega, flash Front camera: Fixed focal length, 5Mega (optional) |
| Adaptor | 5V2A,100-240V AC 50/60HZ, Plug: National standard |
| Extend Slot |
SlM card slot: Single card, Nano SlM*1+TF*1 SD card slot:MicrosD,up to 256GB |
| Environmental Specifications | |
| Storage Temperature | -30℃ to 70℃ |
| Operation Temperature | -25°C~+55°C |
| Humidity | 5%-95% non-condensing |
| ESD | 8K/15K |
| Protection Grade |
IP65; 1.5m steel floor fell 30 times, 1.8m steel floor fell 60 times(with silicone sleeve) 0.5m steel plate falls 2000 times, 0.5m steel plate roller 3000 times(with silicone sleeve) |
| Wireless Connectivity | |
| WPAN | BLE V5.0 |
| NFC | Option version |
| WLAN |
802.11.a/b/g/n/ac WiFi dual band radio; lPv4;IPv6 |
| WWAN | 2G/3G/4G full Netcom |
| Sensor | Gravity sensor (optional) Proximity Sensor (optional)Photosensitive sensor (optional) Hall Sensor (optional)status lamp |
| Voice | |
| Speaker | Min 100db |
| Mic | Double Mic with Noise Reduction |

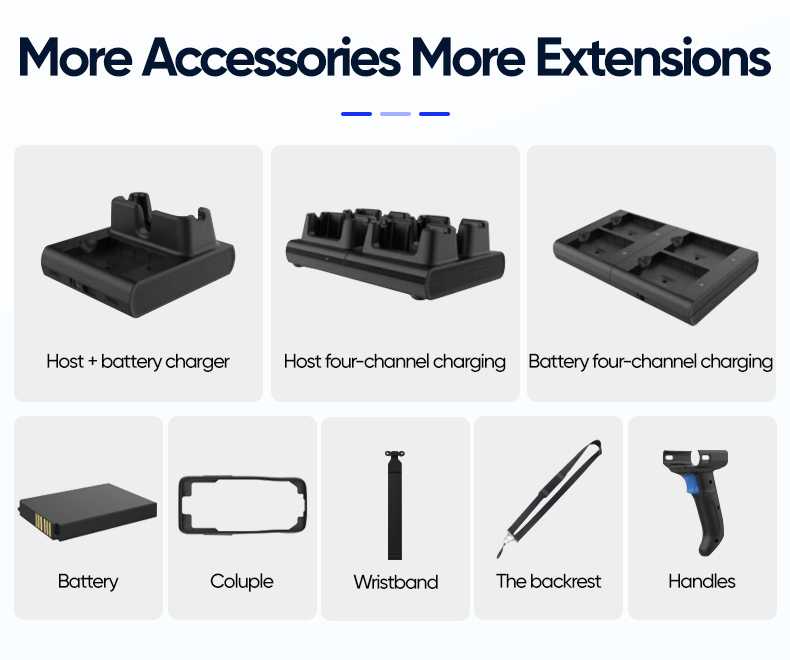

| Optional Accessory | Single host and battery charger, 4-slot device charger, 4 battery charger,Spare battery, silicon rubber case, wrist strap, Shoulder belt |
