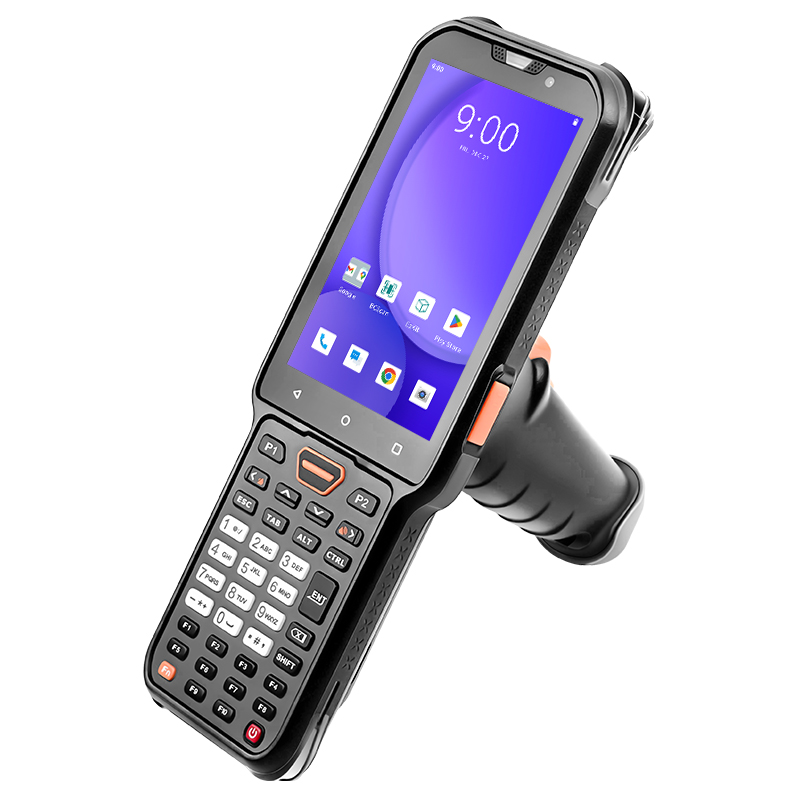

The F9827 PDA is engineered for ultra-low temperature environments, with -30℃ temperature resistance, and a 5200mAh low-temperature battery for sustained power in cold storage operations. It combines high-density wide-angle scanning and 10/21m long-range scanning capabilities, paired with a robust construction that withstands extreme drops and harsh conditions, ensuring reliability in the toughest settings.
Model NO. :
F9827CUP :
Octa-core 2.2 GHzOperatng System :
Android 14.0Display :
4.3-inch , 800(H)x480(W) WVGA, industrial-grade IPS displayMemory :
4GB LPDDR4X (optional 6GB, 8GB) ;64GB UFS2.2 (optional 128GB, 256GB, 512GB)Power :
Removable lithium-ion battery, rated capacity 5200mAh, support battery replacement without disconnecting 9V/2A 18W PE fast charging (optional)Weight :
400g (with battery, without handle)Drop Specifications :
Can withstand multiple falls from a height of 1.8m onto a concrete floorSealing :
IP68
CPU | Octa-core 2.2 GHZ |
Operating System | Android 14.0 |
RAM | 4GB LPDDR4X (optional 6GB, 8GB) |
ROM | 64GB UFS 2.2 (optional 128GB, 256GB, 512GB) |
Dimension | 212(L)x75(W)x32.5(Thick)mm |
Weights | 15.87oz./449g (without hand bridge, with battery) |
Display | 4.3-inch. 800(H)x480(W) WNVGA, Industrial Grade IPS Display |
Imager window | Corning Gorilla Glass |
Touchscreens | Corning Gorilla Glass, dual mode capacitive touch, support stylus without gloves finger play with gloves finger input, support multi-touch and wet hand operation |
Backlight | 450 NITS, LED backlight |
Battery | Removable lithium-ion battery, rated capacity 5200mAh, support battery replacement without disconnecting 9V/2A 18W PE fast charging (optional) |
Expansion Slots | Micro SD card, support SDHC, SDXC, up to 512GB |
Expansion Interfaces | Back POGO PIN:Scanning handle interface Bottom POGO PIN:Support USB 2.0 and OTG mode, 5V/2A charging interface |
SIM card slot | 1x Nano SIM card |
PSAM card | Optional 1x PSAM |
Notifications | Beep; Multi-color LED (System Alert Light, Heating Alert Indicator, Scanning Indicator); Vibration Motor |
Network connection | 2G/3G/4G, Wi-Fi, Bluetooth, Ethernet docking support |
Sound & Audio | 2WN Ultra Linear Speaker, Earpiece, Dual Microphone (Noise Cancellation Supported) Type-C Headset Supported |
Keyboards | Front 38 keys (including one main scanning key, power key); Side 2 dedicated scanning keys. (47 and 29 keys are optional). |
Interface Ports | Bottom USB 2.0 support OTG |
Scanning engine | ME5066/SE4750/N6803/EX30 and other professional 2D scanning engine |
Camera | Front 5MP fixed-focus camera,Rear 13MP camera with autofocus support and flash(with hand bridge: rear camera and sweeping dock combined in scanning position/without handle: camera on the back) |
NFC | Supports cards such as IS015693, 1S014443A/B, MMIFARE (including Mifare S50, Mifare S70, Mifare UltraLight, Mifare Pro, Mifare Desfire), FeliCa, etc. |
Sensors | Proximity sensor, light sensor, accelerometer, compass, infrared (optional) |
Wireless WAN | FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28A/B28B/B66/B71TDD-LTE: B34/B38/B39/B40/B41WCDMA: B1/B2/B4/B5/B6/B8/ B1/B2/B4/B5/B6/B8/ B19CDMA 1x: BCOGSM: 850/900/1800/1900 B19CDMA 1x: BCOGSM: 850/900/1800/1900 |
GPS | GLONASS, NavIC, Beidou,GPS, QZSS, Galileo |
Wireless LANs | IEEE 802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v/w2.4G/5G Dual-Band Wi-Fi Support 802.11r Fast Roaming |
Bluetooth | BT5.2+BR/EDR+BLE communication distance>10m |
Operating Temperature | -30°C to +50°C (screen and scan window can be heated) |
Storage temperature | -40°C to +70°C |
Humidity level | 5% to 95% non-condensing |
Sealing | IP68 |
Drop Specification | 1.8m (concrete floor) |
Rollover specifications | Withstand 2000 drops of 0.5m (1000 rolling impacts) |
Electrostatic Discharge (ESD) | +/-15 kV air discharge +/-8 kV direct discharge |
Standard | Power adapter x 1, USB Type-C cable x 1, rechargeable battery x 1, wrist strap x 1 (without handle) / hand strap x 1 (with handle) |

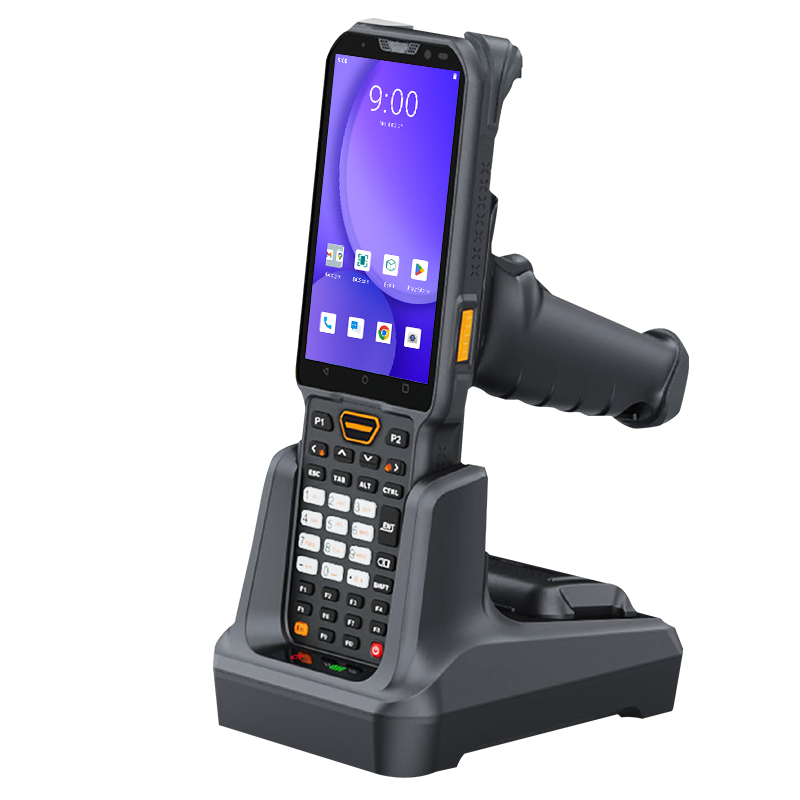

Optional Accessories | Single charger (charging + USB communication), single handle, OTG cable |
