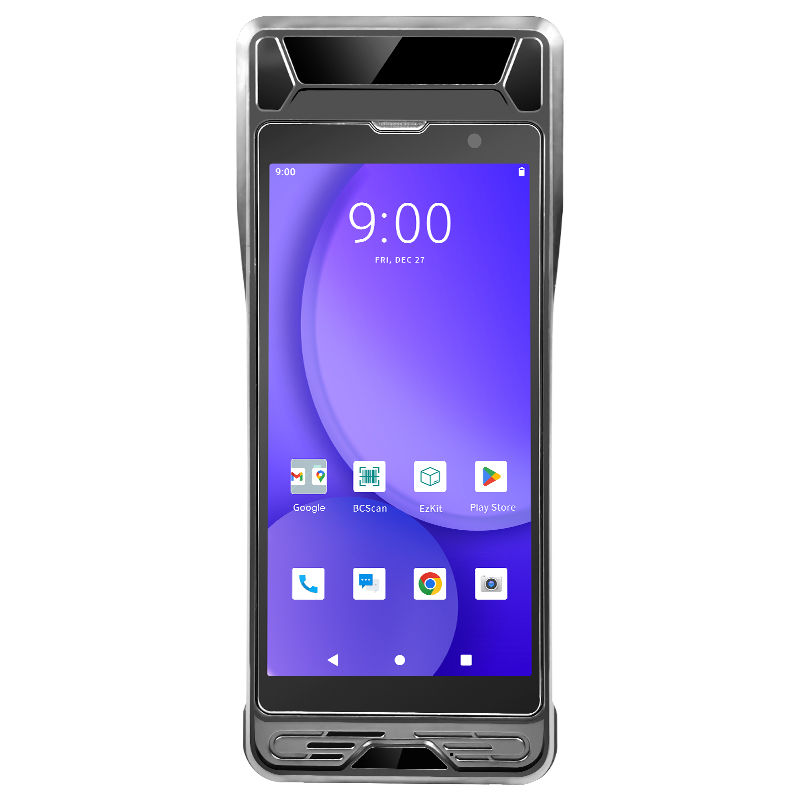

The F9858 is a versatile smart handheld terminal and barcode printer featuring multiple scanning heads, including optional UHF and ID card (with hardware decoding), paired with a high-capacity 6800mAh battery for 512-hour extended usage. Designed for seamless scanning and printing tasks in diverse environments, it delivers unmatched efficiency and durability.
Model NO. :
F9858CPU :
Quad-core 2.0GHz Upgradeable Octa-core 2.4Operatng System :
Android 13.0Display :
5.5-inch, 720*1440 resolution, capacitive IPS HD screenMemory :
RAM: 4GB ROM: 64GBPower :
6300mAhWeight :
420g (including battery weight, depending on functional configuration)Drop Specifications :

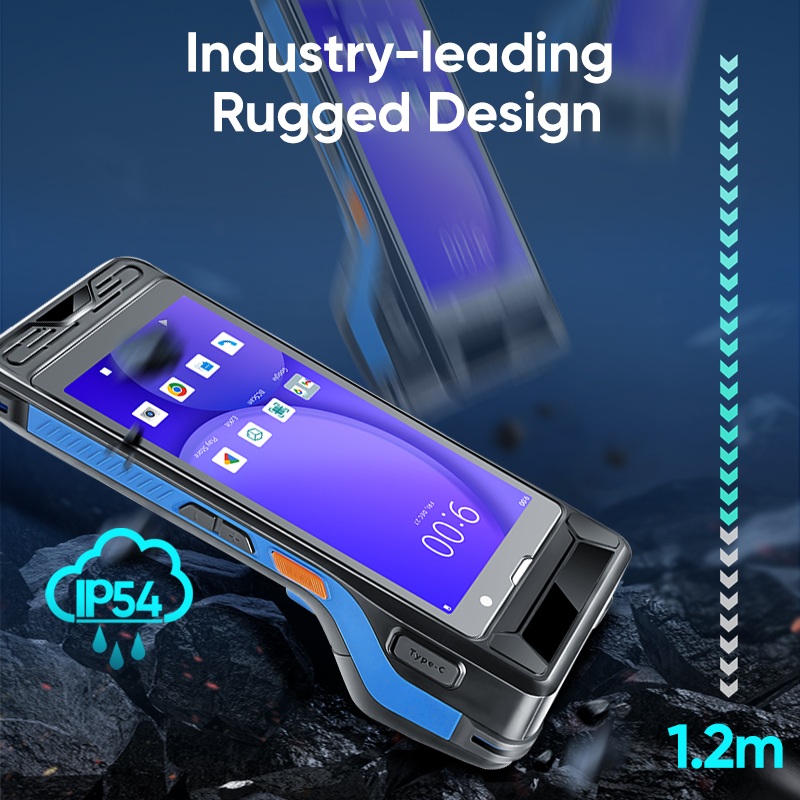

3C certification, industrial grade certification IP54, drop certification 1.2 metersSealing :
IP54
Category | Parameters |
Dimensions | 187.3*81*50.8mm |
CPU | Qualcomm QCM2290 Quad-core Cortex A-53, 2.0Ghz (upgradable to octa-core 2.4Ghz) |
Operating System | Android 13 |
Weights | 420g (including battery weight, depending on functional configuration) |
Memory | 4GB+64GB |
Display | 5.5-inch, 720 * 1440 respectively, capacitive IPS HD screen, multi-touch |
Reticulation | 2G, 3G, 4G (full network) |
WIFI | IEEE 802.11 a/b/g/n 2.4G&5G Dual Band |
Bluetooth | BT5.0 |
Camera | Front 8-megapixel (optional) / Rear 16-megapixel (camera on the back of the machine), autofocus, high-brightness LED flash |
GPS | GPS/Beidou/Glonass/Galileo |
Prompts | Three-color breathing light, vibration |
Transducers | Gyro Sensor, Distance Sensor |
Battery | 5V/3A, 3.8V/6300mAh high performance lithium polymer battery (removable) |
Importation | Microphone |

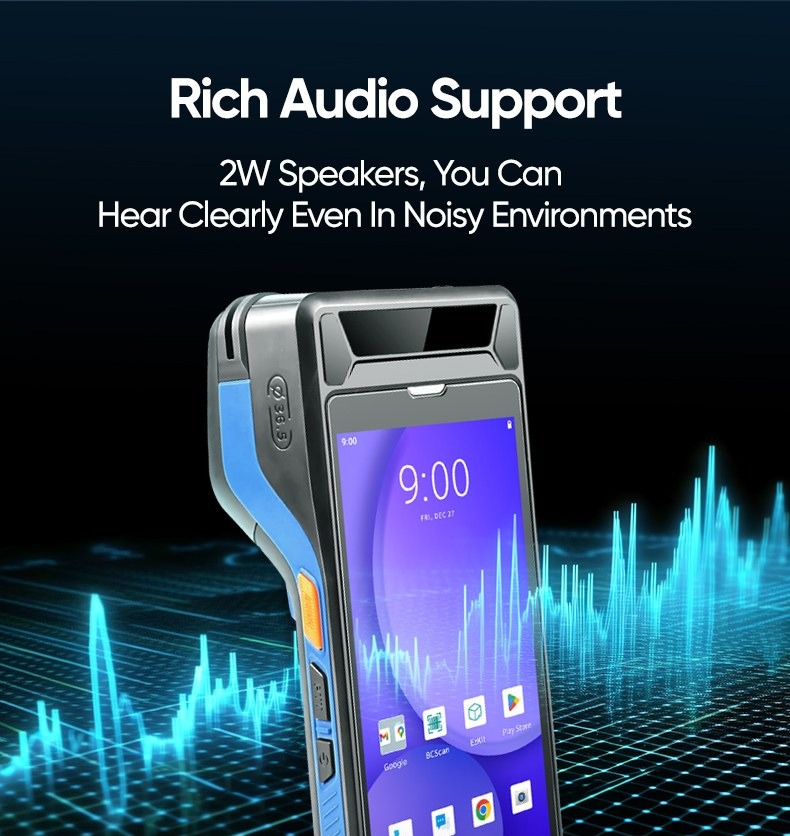

Audible | 2W speaker, earpiece |
Interfaces | TYPE-C USB 2.0 |

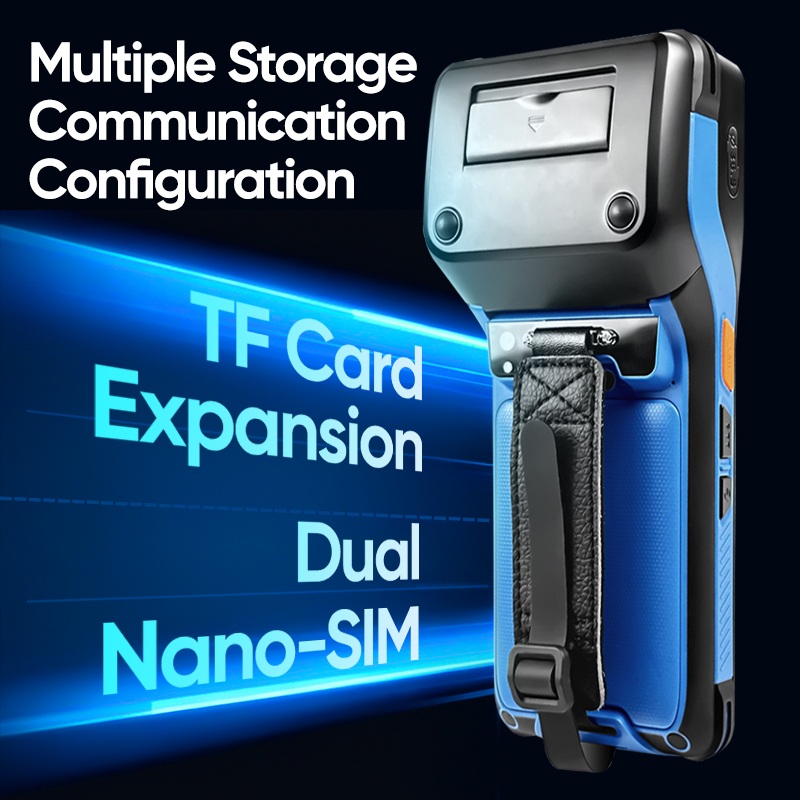

Memory card | TF card x 1 (up to 512GB expandable) |
SIM card | Nano-SIM card x2 |
Buttons | Turnkey | Power on/off button |
Right SCAN key | Right Barcode Scanning Shortcuts | |
Left SCAN key | Left Barcode Scanning Shortcuts | |
Volume buttons | Volume +, Volume - | |
PTT | Default paper path buttons (customizable) |

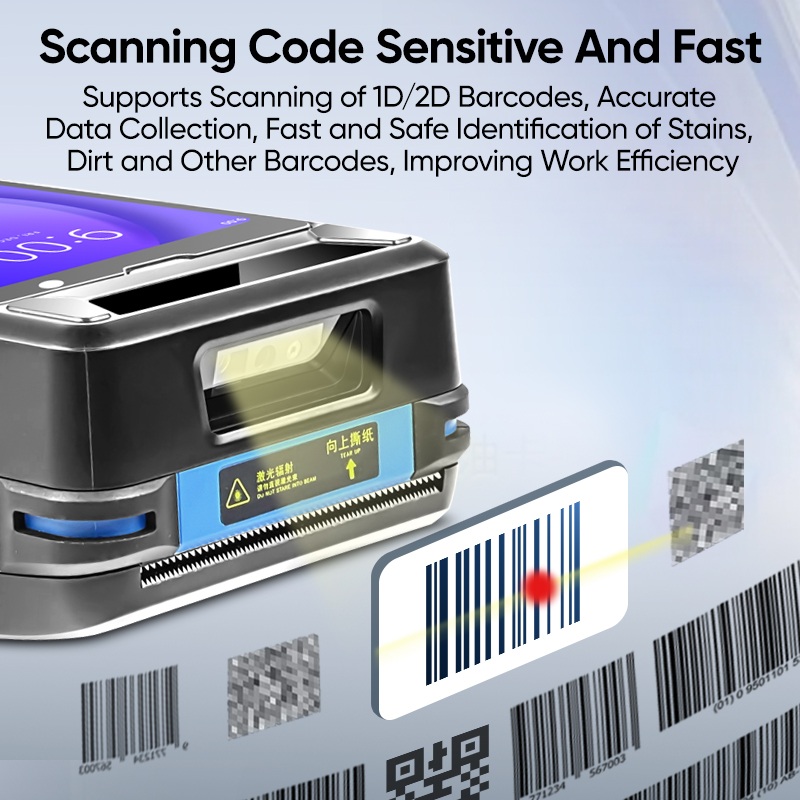

Scanning head (optional) | Support for 2D barcode types | PDF417, MicroPDF417, GS1 Composite, Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Hanxin Code, etc. |
Support for 1D barcode types | Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codabar,Interleaved 2 of 5,China post 25,ISBN/ISSN,Code93,UCC/EAN-128,GS1 Databar,HIBC,etc. | |
2D scanning engine | Honey N6703, Honey N5703, Domestic K2 | |
PSAM (optional) | Supported Protocols | /ISO/IEC 7816-1/2/3/4, (four card slots, optional) |
ID card recognition (optional) | Hard solver module | Comply with ISO/IEC 14443type B standard, as well as “GA 450-2003 Desktop Resident Identity Card Reader General Technical Requirements”, “1GA450-2003 Desktop Resident Identity Card Reader General Technical Requirements No. 1 Modification But (Draft)”. |
Frequency and distance | 13.56MHz frequency, reading distance 1-3CM | |

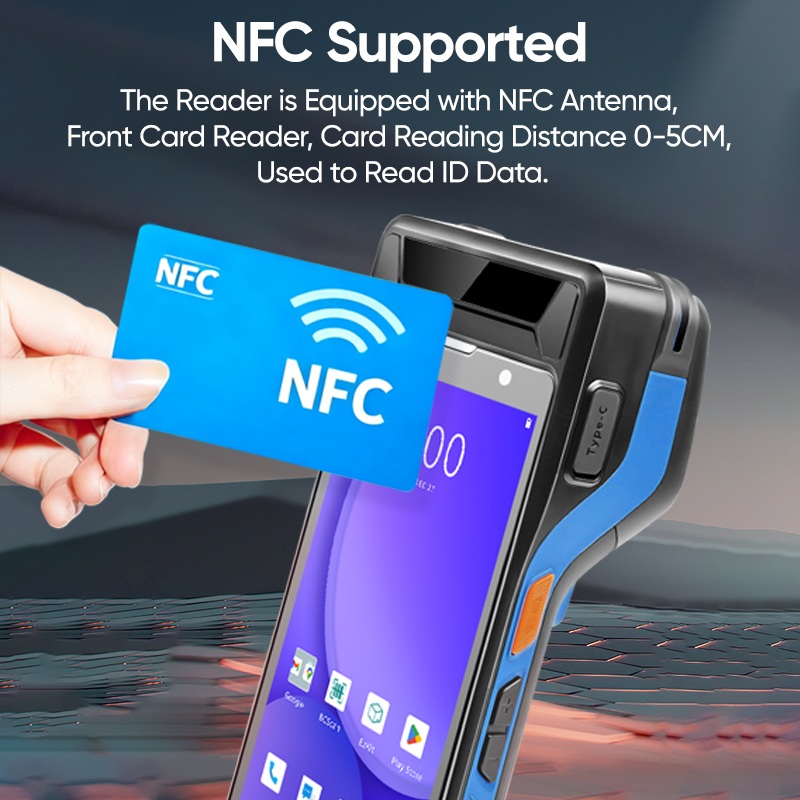

NFC (optional) | Protocol Standard | Operating frequency: 13.56MHz, support ISO14443A/B, 15693 protocols |
Read/Write Distance | Reading distance 0-5CM (front reading) | |
Seat charger (optional) | Meaning | Contact 4PIN point base charging, defined GND/5V |
UHF (optional) | Frequency | FCC (USA) 902-928MHz, ETSI (Europe) 865-867MHz, SRRC-MII (China) 840-845MHz, 920-925MHz |
Protocols | EPC Class 1 Gen 2 (ISO 18000-6C) | |
Recognition Distance | Recognition distance 0-3 meters, the use of 2dBi ceramic antenna, (depending on the size of the electronic tag), tag reading rate ≥ 50tags / s | |

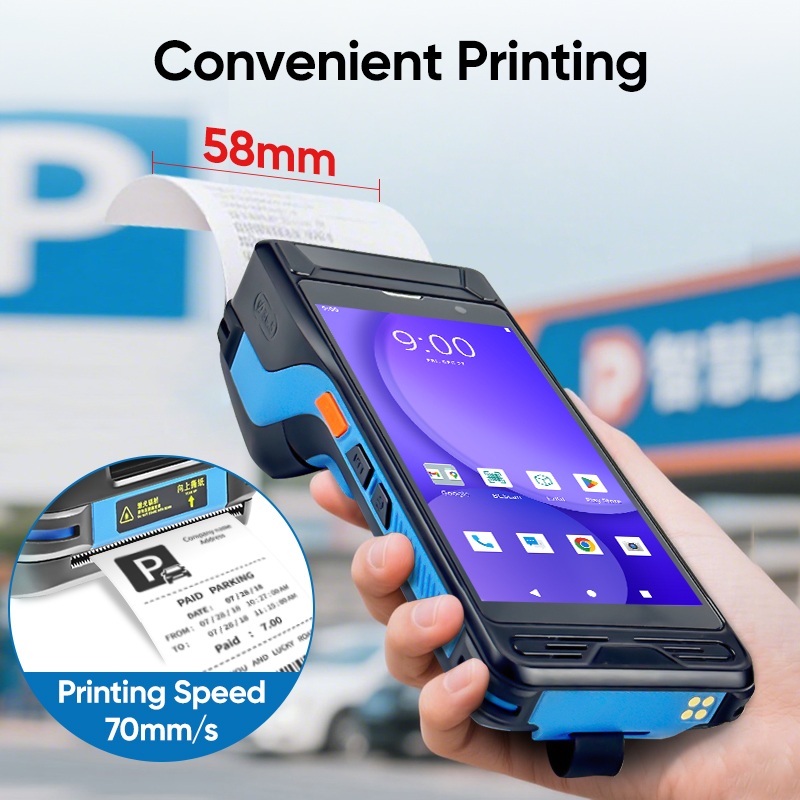

Printer | Printing method | Built-in line matrix thermal printer |
Print Width | 58 mm (maximum paper width) (bin width adjustable 30/40) | |
Print Medium | Thermal paper and thermal stickers | |
Sensors | Black mark/out-of-paper/overheat/overvoltage protection | |
Print Type | Text/Image/Barcode/2D Code |
Operating Environment | Operating Temperature | -25°C to 50°C |
Storage Temperature | -30°C to 70°C | |
Environmental Humidity | 5%RH-95%RH (no condensation) | |
Electrostatic Protection | ±8KV air discharge, ±4KV contact discharge |
Accreditation Information | 3C certification, industrial grade certification IP54, drop certification, etc. |
Supported Development Languages | Android proto, uniapp, js, Apicloud |
Default Accessories | Manual, power adapter, USB cable, strap, tempered film |
