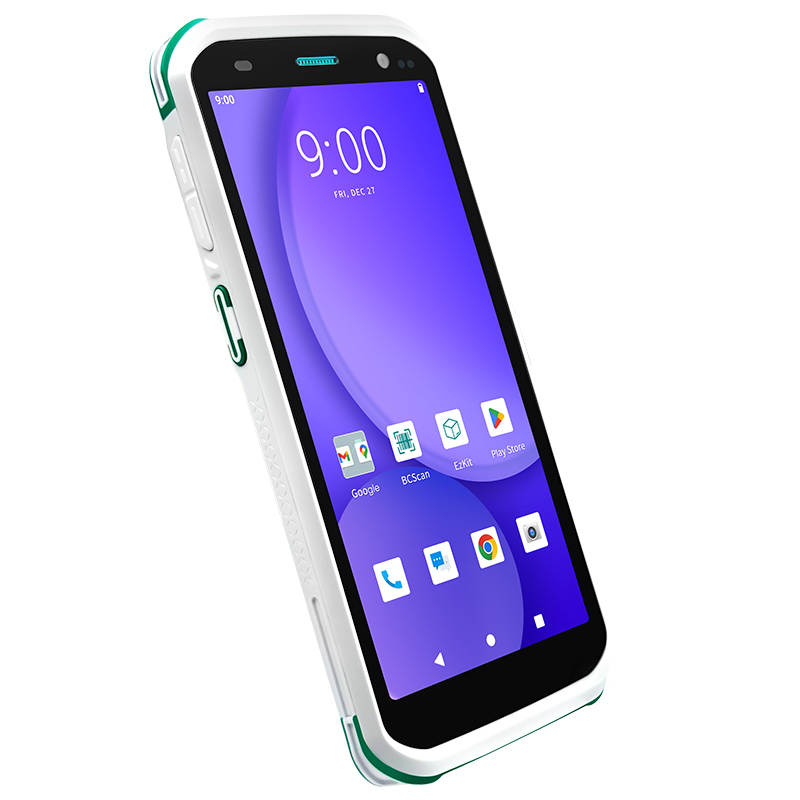

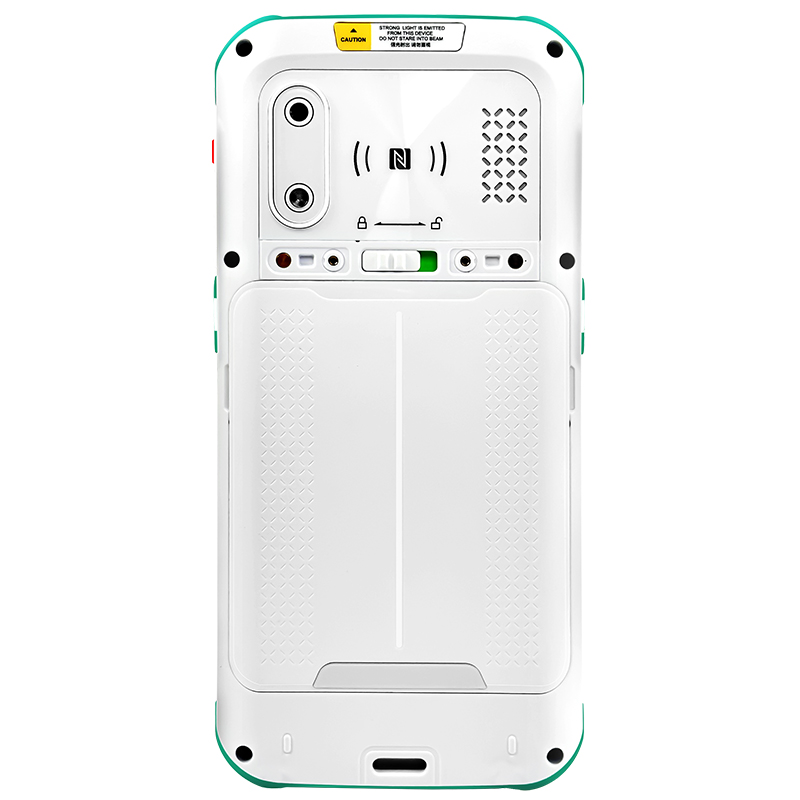

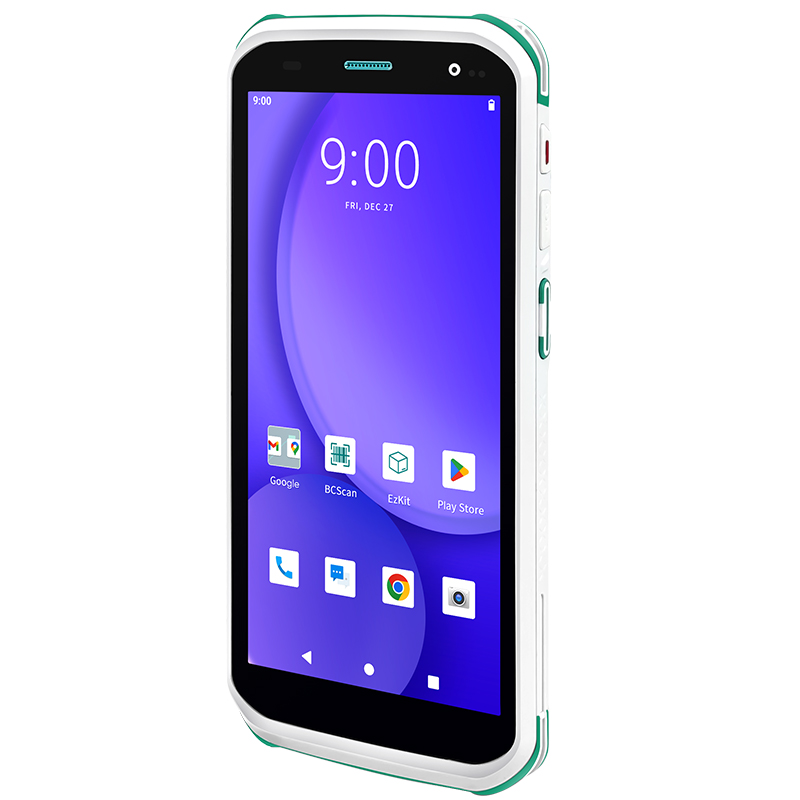

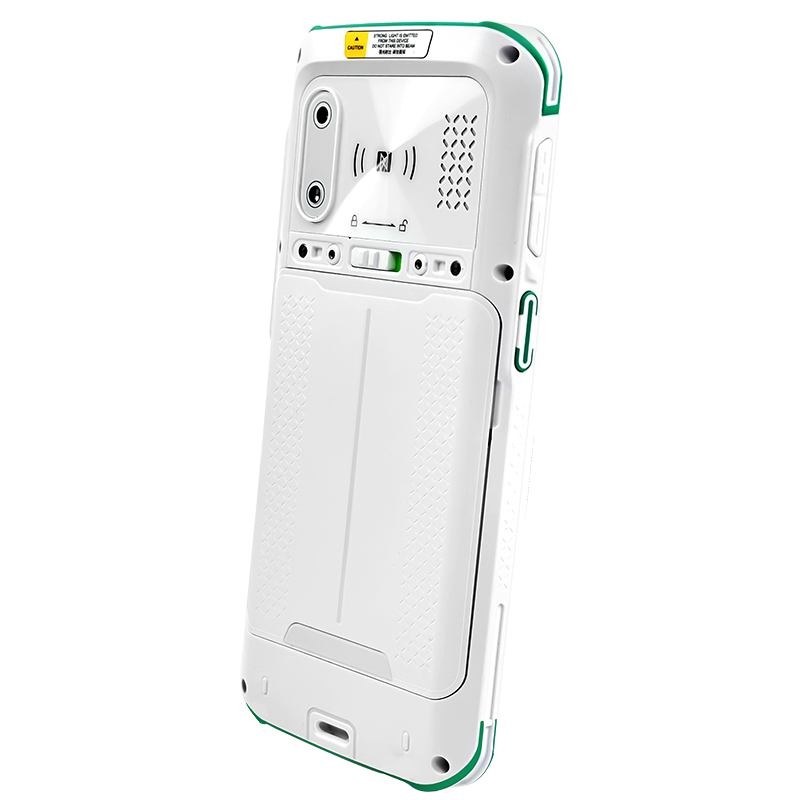

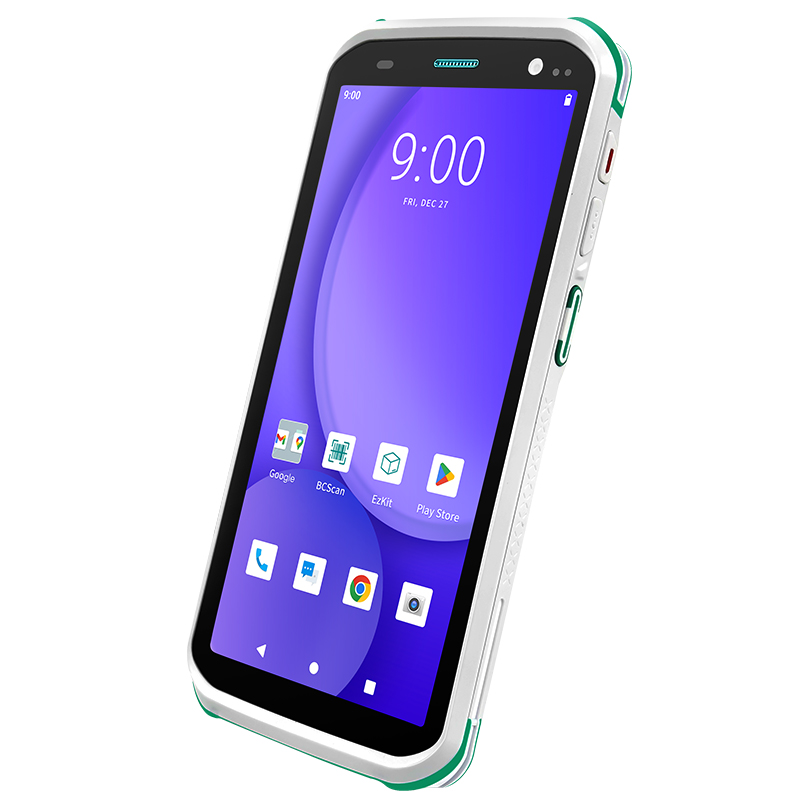

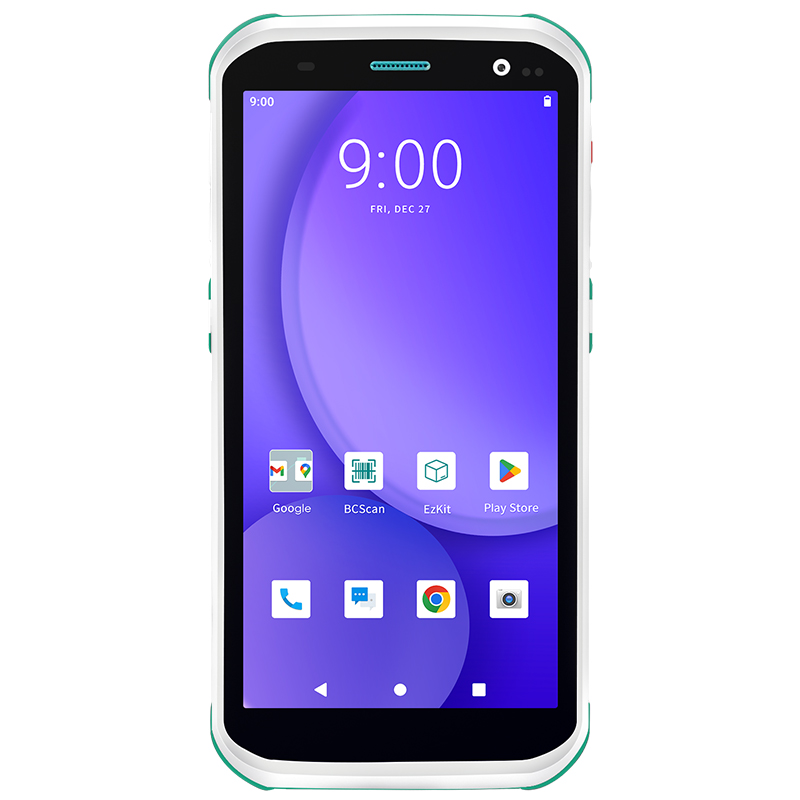

The new generation of the medical version of F9825M sets a new standard in performance and user experience. It not only boasts an uncommonly battle-hardened body configuration but also features excellent medical quality and a chemical-resistant shell design, making it ideal for demanding medical environments. Additionally, it supports multiple barcode readings, including Pharmacode and UDI code, ensuring versatility and efficiency in various medical applications.
Model NO. :
F9825MCUP :
8Core, 2.0GHz / 2.2GHZOperatng System :
Android 11 / Android 13Display :
5.5 in. High Definition (1440 × 720), industrial-grade IPS displayMemory :
3GB RAM（4GB optional） 32GB ROM（64GB optional)Power :
Rechargeable Lithium-ion 5000 mAh minimum (3.85V), PE fast charging (up to 3.0 A)Weight :
249g (including battery)Drop Specifications :
Can withstand multiple falls from a height of 1.5m onto a concrete floor.Sealing :
IP67
| Physical Characteristics | |
| Dimensions | 156(H)×75(W)×14.5(T)mm6.14(H)×2.95(W)×0.57(T)inch |
| Weight | 249 g / 8.78 oz.（Battery included） |
| Display | 5.5 in. High Definition (1440 × 720), industrial-grade IPS display |
| Touch panel | Corning® Gorilla® Glass Dual-mode capacitive touch, supports stylus, ungloved finger or gloved finger input, multi-touch and wet hand operation |
| Backlight | 450 NITS, LED |
| Power | Rechargeable Lithium-ion 5000 mAh minimum (3.85V), PE fast charging (up to 3.0 A ) |
| Expansion Slot | Micro SD Card slot, up to 256GB |
| Expansion Ports | 2 Pin Rear connection: Trigger key signal4 Pin Bottom connection: Charging port 5V/3A, support USB communication and OTG mode |
| SIM Slots | 2 x Nano SIM, 1 x e-SIM (Optinal) |
| Notification | Audible tone; Multi-color LEDs; Vibration |
| Voice and Audio | Speake(1.5W）, Telephone receiver, Dual microphones |
| Keypad | On-screen keypad and enterprise keyboard |
| Buttons | Programmable; Scan on each side; volume up/down; power; push-to-talk (PTT) |
| Interface Ports | Bottom USB 2.0 OTG- host/client (Type-C) |
| Performance Characteristics | |
| CPU | 8Core, 2.0GHz / 2.2GHZ（optional） |
| Operating System | Android 11 / Android 13(optional） |
| Memory | 3GB RAM（4GB optional）32GB ROM（64GB optional） |
| User Environment | |
| Operating Temperature | -20℃ to +50℃ |
| Storage Temperature | -40℃ to +70℃ |
| Humidity | 5% to 95%，non-condensing |
| Sealing | IP67 |
| Drop Specification | Withstands multiple 1.5 meter drops to concrete |
| Tumble Specification | 1000 round 0.5 meter tumbles |
| Electrostatic Discharge |
+/-15 kV air discharge +/-8 kV direct discharge |
| Interactive Sensor Technology | |
| Standard Sensors | Light sensor, accelerometer, proximity sensor |
| Optional | Magnetometer, gyroscope, fingerprint sensor |
| Data Capture | |
| Scanning | ME5066/SE4710/N6703/N6803etc. professional 2D scanning engine |
| Camera | Front 5 MP fixed focus; f/2.4 apertureRear 13 MP auto focus; f/2.2 aperture; Flash LED generates balanced white light; supports Torch mode |
| NFC | High RF output power; ISO15693, ISO14443A/B, MIFARE: Mifare S50, Mifare S70, Mifare UltraLight, Mifare Pro, Mifare Desfire, FeliCa Supported cards |
| Wireless WAN | |
| WAN Radio Frequecy | TDD-LTE(B34/B38/B39/B40/B41) FDD-LTE(B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B17/B19/B20/B25/B26/B28A/B28B/B30/B66) WCDMA(B1/B2/B4/B5/B6/B8/B19)TD-SCDMA(B34/B39) CDMA2000 1x EV-DO Rev.A BC0 (800MHz) CDMA 1x GSM/EDGE/GPRS(850/900/1800/1900) |
| GPS | |
| positioning system | GPS L1 with A-GPS；Glonass、BeiDou、Galileo、QZSS、SBAS |
| Wireless PAN | |
| Bluetooth | Bluetooth BT5.0 + BR/EDR + BLE |
| Communication Distance | >10m |
| Wireless LAN | |
| Radio | IEEE 802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v/w（2.4G/5G Dual Band Wi-Fi） |
| Data Rates |
5 GHz: 802.11a/n/ac — up to 433 Mbps 2.4 GHz: 802.11b/g/n — up to 150 Mbps |
| Security and Encryption | WEP,WPA/WPA2-PSK,WAPI,WAPI-PSKEAP: EAP-TLS,EAP-TTLS,PEAP-MSCHAPv2, PEAP-TLS, PEAP-GTC, PWD, SIM, AKA |
| Fast Roam | Supports 802.11r Fast Roaming |
| Accessories | |
| Standard Accessories | Adapter Charger ×1、USB Type-C cable ×1、Rechargeable Battery ×1 |
| Optional | Glass Tempered Film、Protective Case、Hand Strap、Single-Slot( Charge+USB/Etherne)、 Snap on Trigger Handle、OTG Cable |
