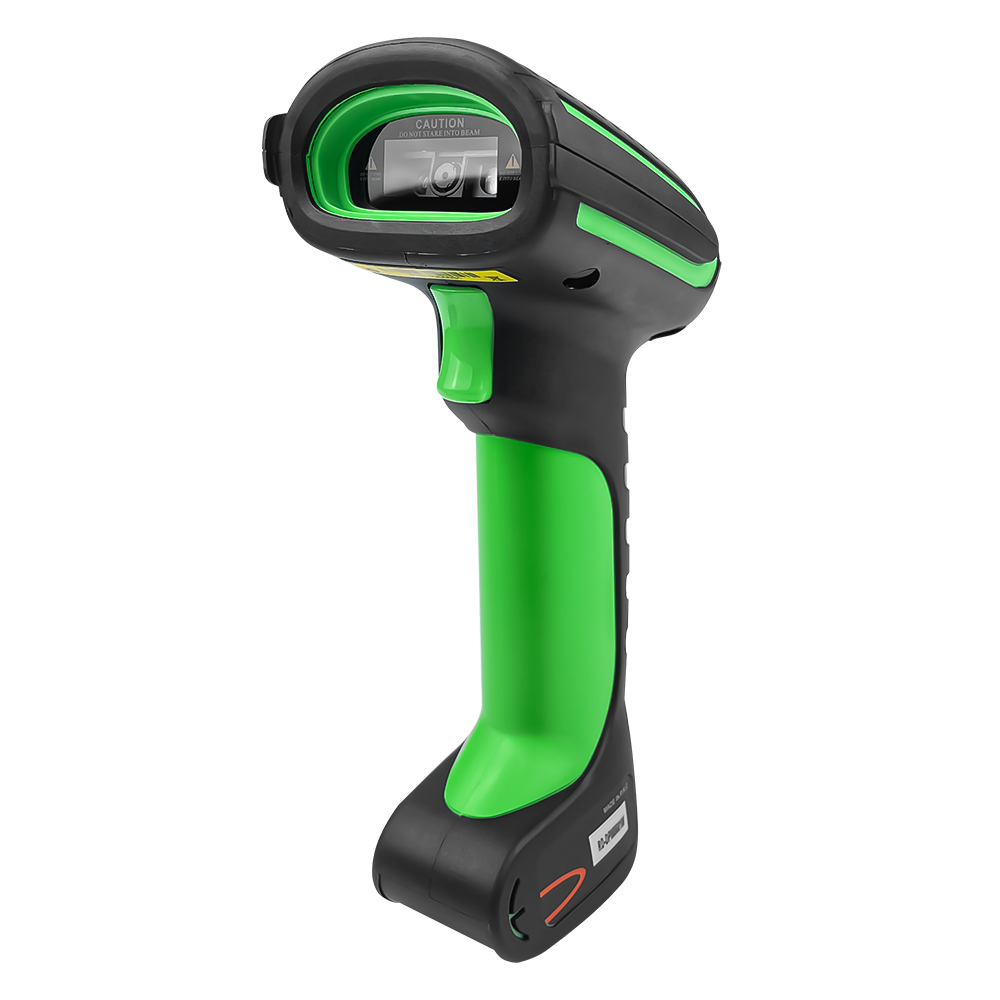

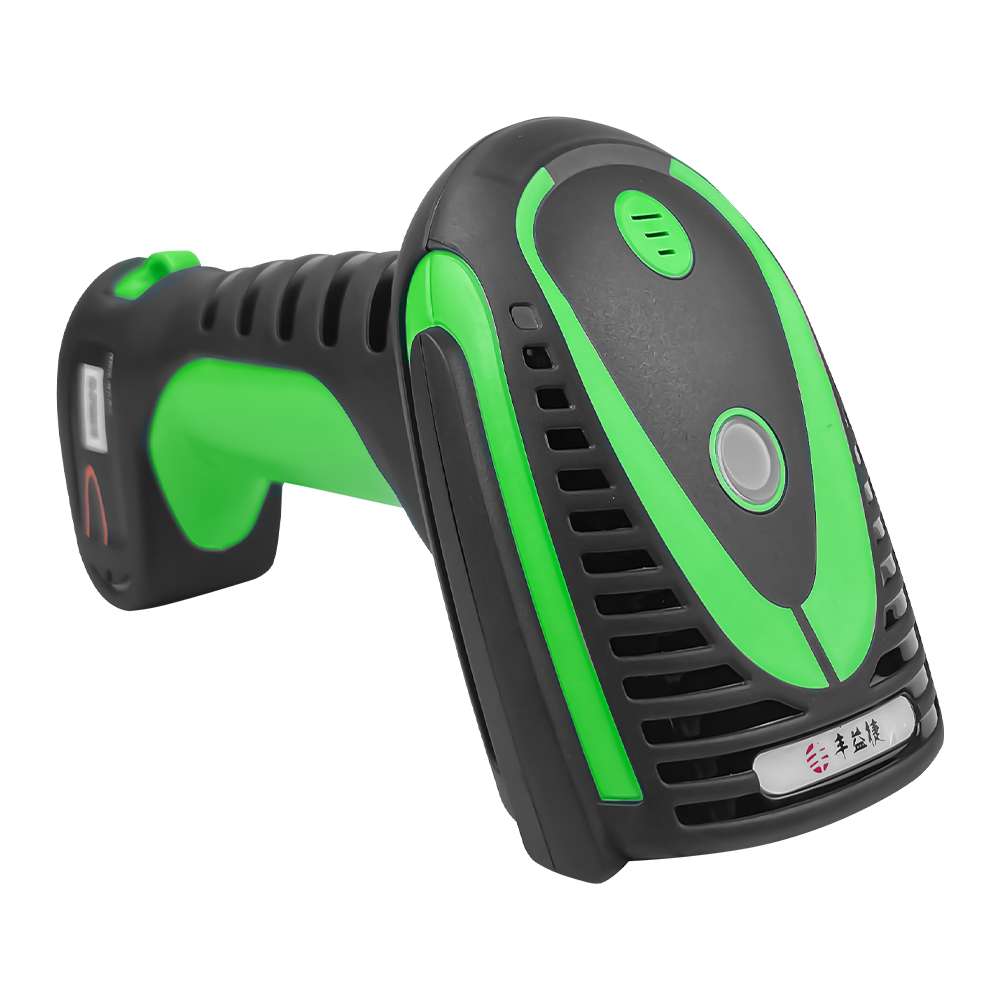

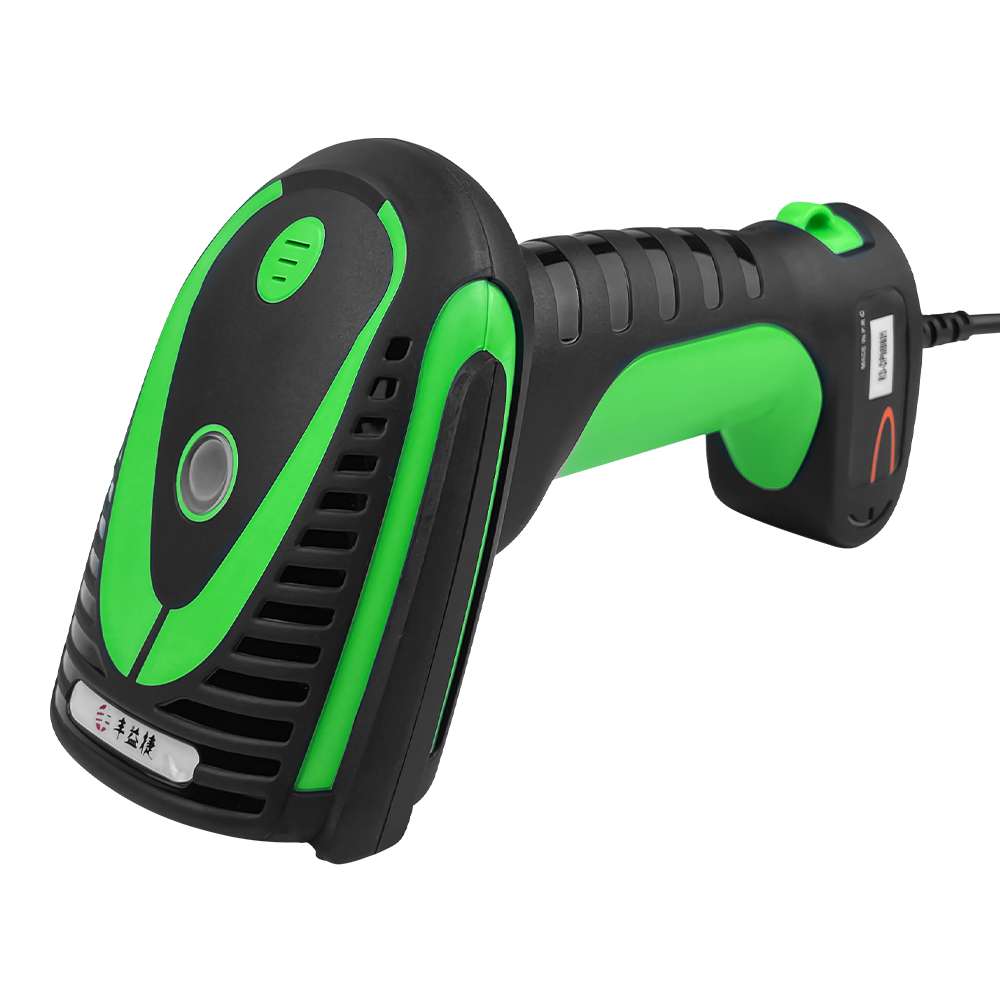

Industrial 2D Wireless and Wired Barcode Scanner IP68 Waterproof DPM Code Reader

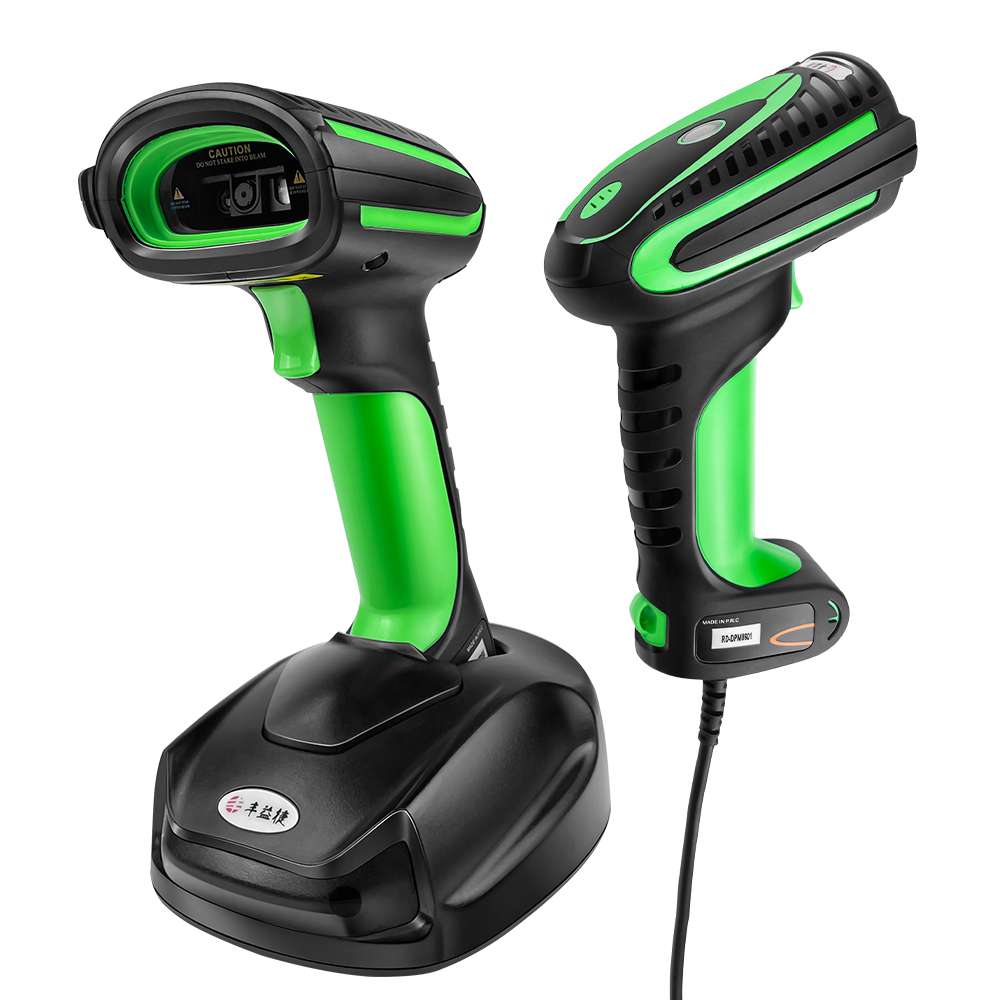

This RD-DP8601 IP68 waterproof industrial barcode scanner supports both wireless (80m range) and wired (USB/RS232) modes, ensuring reliable DPM code reading in harsh environments like automotive plants and warehouses. With a 30-400mm depth of field, ABS+PC rugged construction, and 350K data storage, it excels in wet, dusty, or high-impact workflows while decoding challenging codes (chemical etching, blind hole).
Model NO. :
RD-DP8601Connection :
2.4GScan mode :
Manual mode/Continuous mode/Auto sensing modePower :
2200mAhInterface :
USB-HID,USB-COM，RS232Weight :
480g/332gSupport System :
Linux, Android, MAC, WindowsDimensions :
104mm*74mm*184mm/143mm*104mm*184mm
Mastering Challenging Surfaces with Advanced Optics

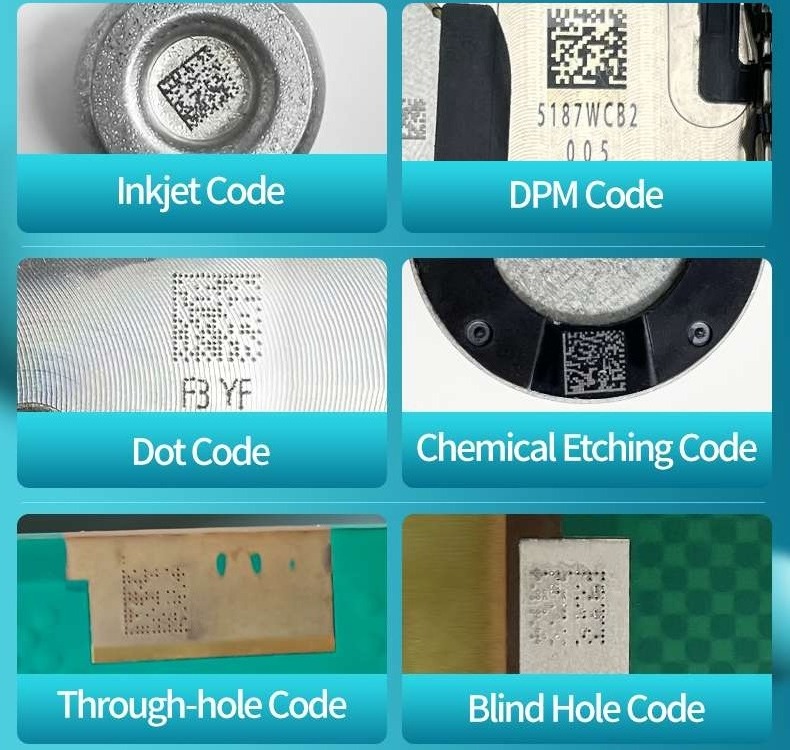

Unlike standard scanners, this device decodes DPM codes laser-etched on rough metal or curved plastics, common in aerospace components. Its 617nm white light compensation penetrates oil films on chemical etching codes, critical for hydraulic part tracking. In foundries, it reads through-hole codes on cast iron without misreads, while blind hole codes in dark machining areas are captured via high-intensity aiming lights. A tire manufacturer reported a 50% faster QA process after adopting this tool for inkjet codes on rubber surfaces.
Engineered for Industrial Efficiency:
Precision: 4mil density decoding for micro codes.
Durability: Survives 1.5m free falls and IP65 conditions.
Versatility: From SMT lines to freezer warehouses – one scanner fits all.
Why Choose This Scanner?
Small Barcode Master: Read F3 YF and Inkjet Codes under 4mm.
Industrial Toughness: IP65 + 5m drop-proof for mining or construction sites.
Wireless Freedom: 80m range vs. competitors’ 30m.
350K Data Storage: Buffer scans during network outages.
Beep + LED Alerts: Cut missed-scan penalties by 90%.
Optimized for Harsh Industrial Environments:
Packaging Factories: Rapidly scan DPM codes on corrugated boxes under dusty conditions.
Automotive & Motorcycle Plants: Decode chemical etching codes on metal parts with 4mm precision.
3C/SMT Assembly: Handle tiny barcodes on circuit boards with ultra-sensitive scanning.
Board & Accessories Factories: Waterproof design (IP65) withstands moisture in wood processing.
Precision Meets Speed for Unmatched Efficiency

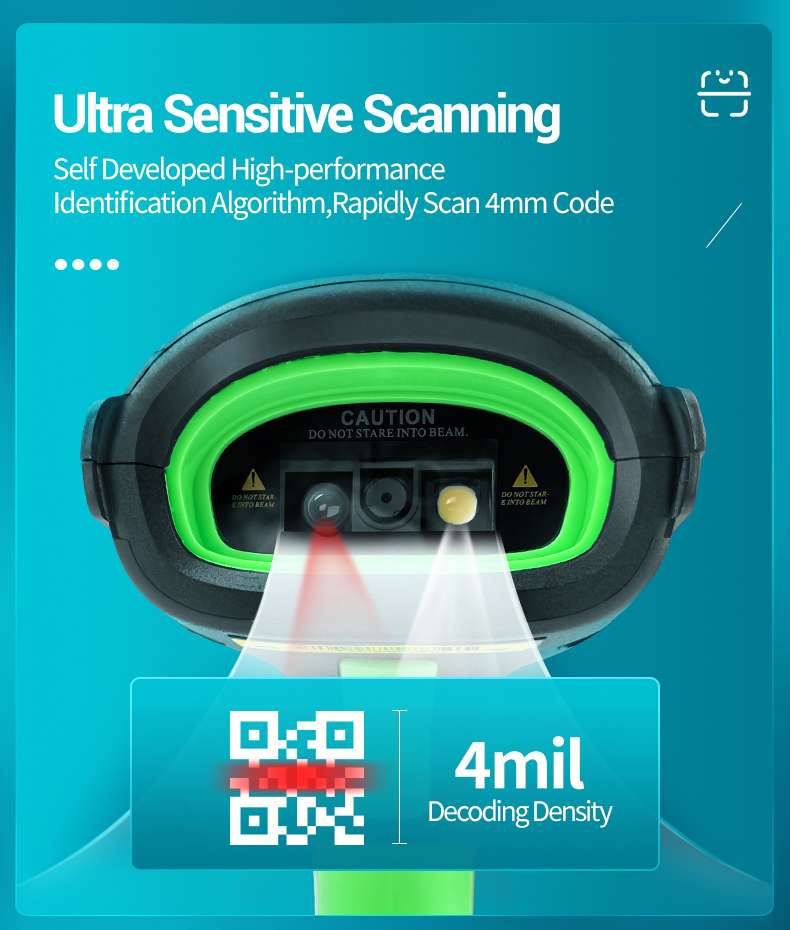

Equipped with a self-developed imaging algorithm, this scanner decodes 4mm micro barcodes (e.g., Dot Code, F3 YF) in just 0.05 seconds – 30% faster than conventional models. Its 4mil decoding density ensures accuracy on reflective surfaces like polished metal or glossy labels, critical for medical device tracking. The red aiming light provides real-time feedback, reducing rescan needs by 50% in high-speed production lines. A safety warning (“DO NOT STARE INTO BEAM”) ensures compliance with industrial laser standards. For quality control teams, this means fewer bottlenecks and higher throughput in automotive stamping or pharmaceutical packaging.
Built to Endure Extreme Conditions
The ABS+PC reinforced housing and IP65 rating make this scanner a workhorse in harsh environments. It survives 1.5m accidental drops – a common risk in mining or construction sites – without performance loss. The dustproof seals prevent particle ingress during sandblasting or cement mixing, while the waterproof design allows operation in rainy outdoor logistics yards or humid food processing plants. Case studies show a 60% reduction in equipment replacement costs for factories battling frequent falls or moisture damage. Additionally, the frost-resistant lens ensures reliable DPM code reading in cold storage facilities (-10°C to 60°C), eliminating downtime during temperature shifts.
All-Weather Reliability:
IP65 Certified: Resists condensation in cold storage (-10°C) and humidity in tropical climates.
Frost-Resistant Lens: Maintains clarity for DPM code reading in freezing temperatures.
Uninterrupted Power for Round-the-Clock Operations
The 2200mAh lithium battery delivers 5 hours of continuous scanning – enough to cover a full warehouse inventory shift without recharging. In standby mode, it lasts 6 months, ideal for emergency audits in low-activity periods. The magnetic charging base enables quick docking, avoiding tangled cables in busy workshops. Compared to competitors’ 1500mAh batteries, this scanner reduces charging frequency by 35%, critical for 24/7 automotive assembly lines. Users report a 90% efficiency boost in retail stocktaking or airport baggage handling, where uninterrupted scanning is non-negotiable.
Freedom to Scan Anywhere:
80m Long-Range 2.4G: Cover large factory floors without signal loss.
Multi-Device Pairing: Sync with USB/RS232/485 interfaces across Windows/Linux/Android systems.
Real-Time Data Sync
Error-Proof Alerts for Critical Workflows
The triple-alert system (beep, vibration, LED) guarantees no missed scans in noisy environments like metal forging or textile mills. Audible tones differentiate between successful scans (short beep) and errors (long beep), allowing operators to correct issues instantly. In pharmaceutical labs, this feature reduces mislabeling fines by up to $10,000/month. The adjustable volume adapts to ambient noise levels, while the vibration mode discreetly notifies users in library archives or hospital pharmacies.
Plug-and-Play Integration for Mixed IT Environments
Compatible with Windows XP to 11, macOS, Linux, and Android, this scanner eliminates driver hassles in multi-OS facilities. The USB-HID mode emulates keyboard input for seamless POS integration, while RS232/485 connects to CNC machines or AGVs in smart factories. A case study in a hybrid IT automotive plant showed a 40% faster deployment compared to brand-locked scanners. For developers, SDK support enables custom workflows, such as linking QR code scans to IoT sensors in Industry 4.0 setups.
| Specification | |
| Model | RD-DPM8601 |
| Light Source Type | 617nm whitelight compensation,red aiming |
| Scanning Principle | image CMos |
| Desu | 1280pix*800pix(1MP) |
| Decoding Capability |
1D:UPC-A，UPC-E，EAN-8，EAN-13,ISBN, Code39.Code 93，Code 128，Codabar,Intereaved2of5RSS-14RSS-14 Limited,RSS-14 Expanded 2D:PDF417.MicroPDF417, Data Matrix, OR Code.Micro QR Code, Maxicode Aztec, DPM Code |
| Trigger method | Manual mode/continuous mode/automatic sensing mode |
| Scanning angle | Elevation angle:60°,angle:360*,deflection angle: 60 ° |
| Perspective | 46°(H)x35°[V) |
| Decoding speed | 30FP/S |
| Scanning Accuracy | >44MM DPM code |
| Scanning depth of field | 30-400mm(EAN13,13mil) |
| Prompt method | Buzzer, LED |
| Contrast | >20% |
| Bit Error Rate | 1/5 million |
| Communication interface | USB-HID.USB-COM，RS232 |
| Weight | 332g |
| Size | 104mm*74mm*184mm |
| Cable wire standard | 1.8m |
| Operating temperature | -20°C-50°C |
| Storage temperature | -40°C-60°C |
| Humidity | 0% -95% RH non condensing |
| Seismic capacity | Capable of withstanding 5m free fall |
| Cable wire standard | 1.5m |
| IP rating | IP68 |
| Voltage | Working DC5V + 5% |
| Electric current | Working state 180mA |
| Specification | |
| Model | RD-DPM8601W |
| Light Source Type | 617nm whitelight compensation,red aiming |
| Scanning Principle | image CMoS |
| Desu | 1280pix*800pix(1MP) |
| Decoding Capability |
1D:UPC-A,UPC-E,EAN-8,EAN-13,ISBN, Code39.Code 93，Code 128，Codabar,Intereaved 2of 5RSS-14.RSS-14 Limited，RSS-14 Expanded 2D:PDF417,MicroPDF417, Data Matrix, OR Code,Micro QR Code,Maxicode Aztec.DPM Code |
| Decoding Speed | 30FP/S |
| Trigger Mode | manual mode/continuous mode/automatic sensing mode |
| Scanning Angle | elevation ± 60 °, angle 360 ° and deflection angle 60 ° |
| Viewing Angle | 46 °(H) x35 "[V) |
| Scanning Accuracy | >44MM DPM code |
| Scanning Depth of field | 30-300mm(EAN13,13mil) |
| Prompt Mode | buzzer, LED, vibration |
| Contrast | >20% |
| Bit Error Rate | 1/5 milion |
| Communication Mode | 2.4G |
| Transmission Distance | about 80m (open) |
| Storage Mode | timely mode,inventory storage mode, with a storage capacity of 350000 characters |
| Pairing Mode | receiver: one-to-one, many to one |
| Communication Interface | USB-HID. USB-COM |
| Weight | 480g |
| Size | 143MM*104MM*184MM |
| Material | ABS+PC |
| Cable Standard | 1.5m |
| Environmental Parameters | Working temperature:-10% C-60C Storage temperature: -20C-70C |
| Seismic Capacity | able to withstand 1.5m free fall |
| Electrical Parameters | voltage: working DC5V ± 5% Current: working 180mA |
| Battery Capacity | 2200MA |
| Charging Time | 4.5H |
| Working Hours | 8H |
| Charging Mode | electric shock magnetic base |
