The RD-DPM8602 industrial barcode scanner offers wireless (433MHz/300m range, Bluetooth) and wired (USB/RS232/485) connectivity options, ideal for demanding environments like automotive, electronics, and logistics. Its 1.3MP sensor decodes damaged/low-contrast 1D/2D codes, while the rugged design withstands drops and extreme temperatures (-20°C~50°C). Choose between long-range wireless flexibility or reliable wired integration to streamline workflows in warehouses, production lines, or outdoor settings.
Model NO. :
RD-DPM8602Connection :
Wireless (433MHz/300m range, Bluetooth) /Wired (USB/RS232/485)Scan mode :
Manual mode/Continuous mode/Auto sensing modePower :
2500mAhInterface :
USB-HID，USB-COM，RS232（Optional）Weight :
265g/450gSupport System :
Linux, Android, MAC, WindowsDimensions :
103mm*70mm*175mm/146.7mm*94.3mm*181.3mmRD-DPM8602 Series Industrial Handheld Barcode Readers
The RD-DPM8602 and its wireless variant, the RD-DPM8602, are rugged industrial handheld code readers designed for demanding environments. Both models feature a self-developed high-performance barcode recognition algorithm with exceptional decoding capabilities for Direct Part Marking (DPM), enabling efficient reading of 1D and 2D codes even in challenging industrial scenarios. Equipped with a 1.3-megapixel sensor, they ensure precise capture of barcode details across manufacturing, logistics, and warehousing applications.
The RD-DPM8602-RB enhances functionality with 433MHz wireless transmission technology, supporting real-time data transfer over distances up to 300 meters, ideal for large-scale facilities or outdoor operations. This wireless model seamlessly integrates with existing systems to accelerate workflows, instantly outputting scanned barcode information to centralized databases or management platforms. Whether opting for the standard RD-DPM8602 or the wireless RD-DPM8602-RB, users benefit from robust construction, rapid decoding, and versatility—key features that streamline inventory management, quality control, and asset tracking in industrial settings.
Key Feature
1、Using self-developed high-performance barcode recognition algorithms, it can efficiently read one-dimensional and two-dimensional codes in industrial scenarios.
2、Quickly read dirty, defective, and low-contrast barcodes to improve work efficiency.
3、Uses 2500 mAh large-capacity battery and removable battery structure to ensure long battery life.
4、Compatible with multiple data interfaces such as USB, RS232, and 485, it can satisfy customers' different application scenarios to a greater extent.
|

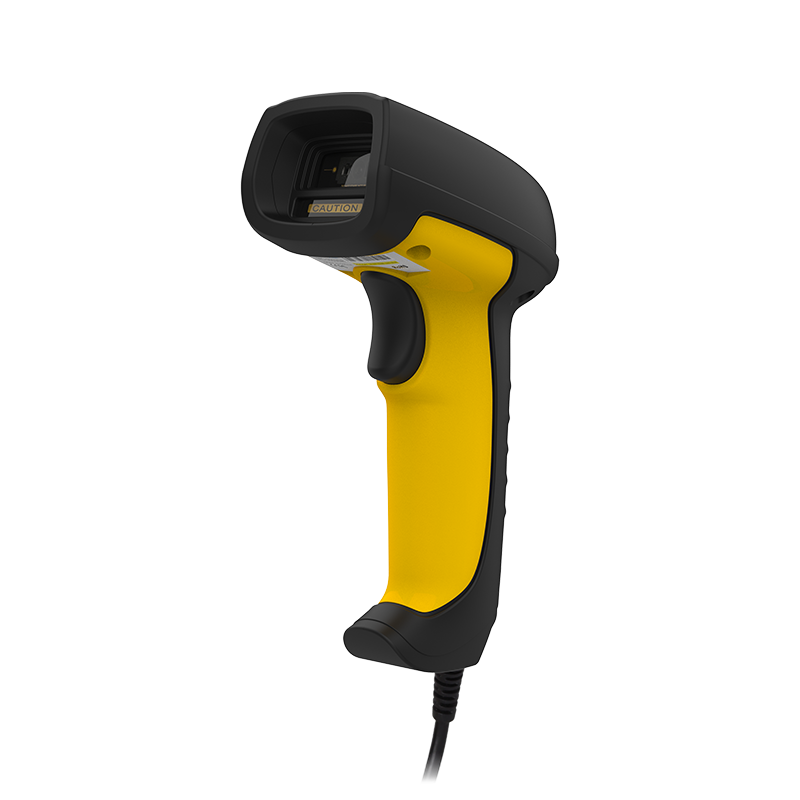

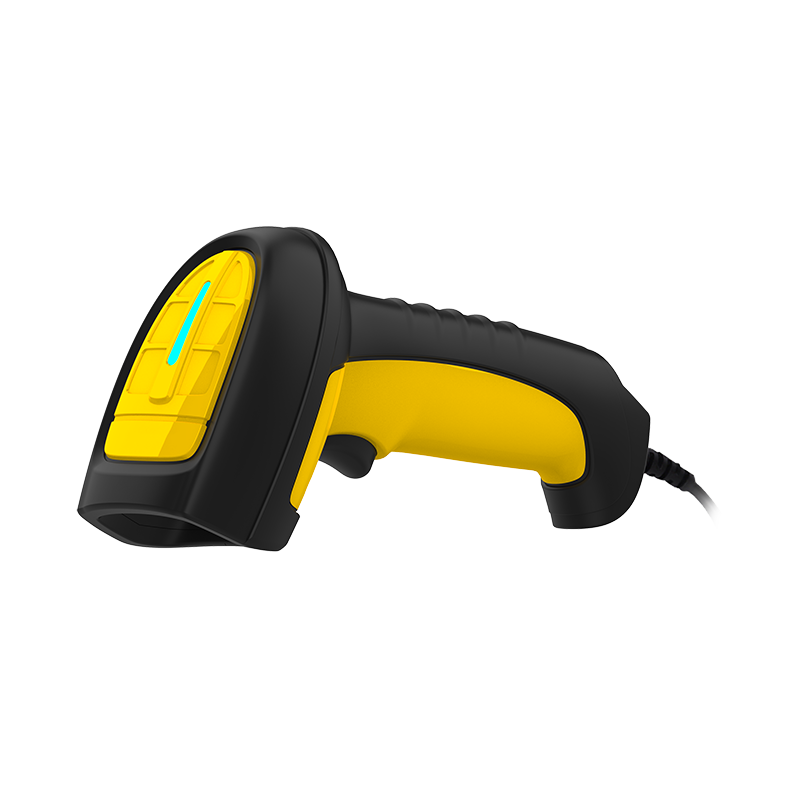

Parameter/Model
|
RD-DPM8602-U
|
RD-DPM8602-R |
|
1.3 Megapixel Industrial Handheld Barcode Reader
|
||
|
Performance parameter
|
||
|
Light source
|
Red LED aiming light, white LED lighting light
|
|
|
Decoding ability
|
1D：Code 39，Code 93，Code 128，CodaBar，EAN8，EAN13，ITF25，ITF14，UPCA，
UPCE, etc.
2D： QR Code，Data Matrix，etc.
|
|
|
Sensor type
|
CMOS
|
|
|
Resolution
|
1280*1024
|
|
|
Scan mode
|
Manual mode/Continuous mode/Auto sensing mode
|
|
|
Detection angle
|
Elevation: ±60°, Rotation: 360°,Yaw: ±60°
|
|
|
Field of view
|
40°（H)x34° {V
|
|
|
Scanning accuracy
|
≥3mil
|
|
|
Depth of field
|
30-200mm(EAN13,13mil)
|
|
|
Prompt method
|
Buzzer、LED、Vibrator
|
|
|
Printing contrast
|
≥20%
|
|
|
Error rate
|
1/5million
|
|
|
Interface
|
USB-HID，USB-COM
|
RS232
|
|
Physical parameter
|
||
|
Weight
|
265g
|
|
|
Size
|
103mm*70mm*175mm
|
|
|
Material
|
ABS+PC
|
|
|
Cable
|
2 meters
|
|
|
Environmental parameter
|
||
|
Working temperature
|
-20℃~50℃
|
|
|
Storage temperature
|
-20℃~70℃
|
|
|
Humidity
|
RH 0% ~ 95% (No condensation)
|
|
|
Shock resistance
|
Passed 3 meters drop test many times
|
|
|
Electrical Parameter
|
||
|
Voltage
|
DC5V±5%
|
|
|
Current
|
270mA
|
|

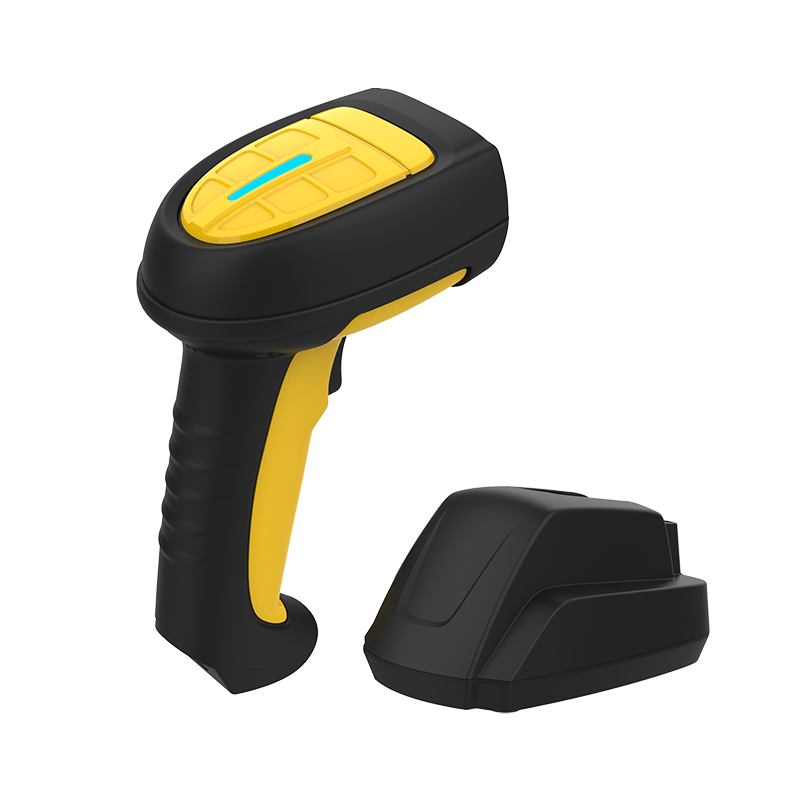

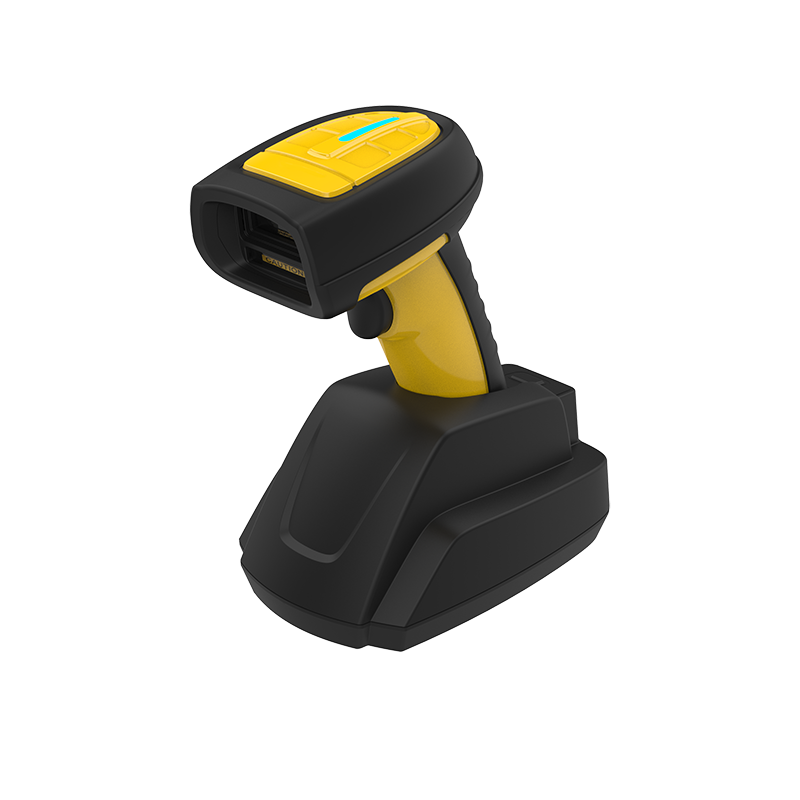

| RD-DPM8602-RB 1.3 Megapixel Industrial Handheld Barcode Reader
|
||
|
Performance parameter
|
||
|
Light source
|
Red LED cross sight light, white LED illumination light
|
|
|
Decoding ability
|
1D：EAN-8、EAN-13、UPC-A、UPC-E、Code 39、Code 93、Code 128、Codabar、ITF14，ITF25,etc.
2D：QRCode, Data Matrix,etc.
|
|
|
Sensor type
|
CMOS
|
|
|
Resolution
|
1280*1024
|
|
|
Scan mode
|
Manual mode/Continuous mode/Auto sensing mode
|
|
|
Detection angle
|
Elevation: ±60°, Rotation: 360°,Yaw: ±60°
|
|
|
Field of view
|
40°（H) x 34° {V)
|
|
|
Scanning accuracy
|
≥3mil
|
|
|
Decoding speed
|
50FP/S
|
|
|
Depth of field
|
30-400mm(EAN13,13mil)
|
|
|
Prompt method
|
Buzzer、LED、Vibrator
|
|
|
Printing contrast
|
≥20%
|
|
|
Error rate
|
1/5million
|
|
|
Wireless parmeter
|
||
|
Wireless
|
433MHz+Bluetooth
|
|
|
Transmission
|
433：300meters
|
|
|
Operating mode
|
Instant mode,inventory storage mode,storage capacity is 350,000 characters
|
|
|
Pairing mode
|
Receiver:one-to-one, many-to-one
|
|
|
Interface
|
USB-HID，USB-COM，RS232（Optional）
|
|
|
Physical parameter
|
||
|
Weight
|
450g
|
|
|
Size
|
146.7mm*94.3mm*181.3mm
|
|
|
Material
|
ABS+PC +TPU
|
|
|
Cable
|
1.8meters
|
|
|
Environmental parameter
|
||
|
Working temperature
|
0℃~50℃
|
|
|
Storage temperature
|
-40℃~70℃
|
|
|
Humidity
|
RH 0% ~ 95% (No condensation)
|
|
|
Shock resistance
|
Passed 3 meters drop test many times
|
|
|
Electrical Parameter
|
||
|
Voltage
|
DC5V±5%
|
|
|
Current
|
270mA
|
|
|
Battery capacity
|
2500mAh
|
|
|
Charging time
|
4H
|
|
|
Working hours
|
8H
|
|
|
Charging method
|
Spring pin contact charging
|
|
