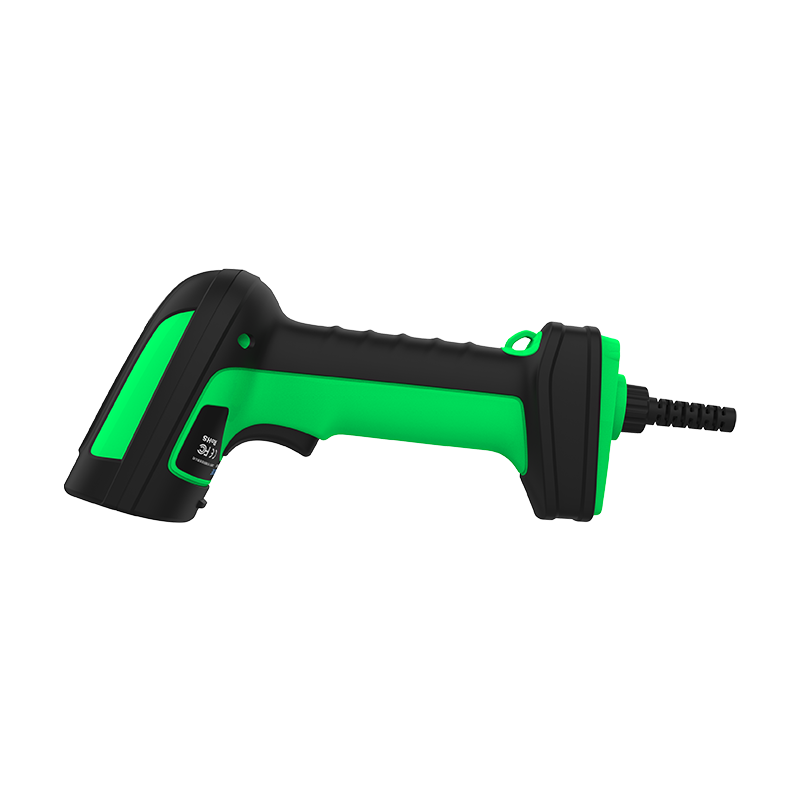

The RD-DPM8605 series combines wired and wireless models for high-speed decoding of 1D/2D codes, including DPM and low-contrast symbols. Featuring IP65 protection, 2.8m drop resistance, and Bluetooth connectivity (wireless model with 3150mAh battery for 8-hour runtime), it is ideal for automotive, electronics, and logistics applications. Supports Profinet, FTP, and seamless integration in harsh environments.
Model NO. :
RD-DPM8605Connection :
Bluetooth BLE Model/USB/WiredScan mode :
Manual mode/Continuous modePower :
3150mAhInterface :
USB2.0/Fast Ethernet（100 Mbit/s），RS-232Weight :
460g/760gSupport System :
Linux, MAC, Android, WindowsDimensions :
104mm*79mm*215mm; Base: 248mm*106mm*69mm/73.4 mm × 104 mm × 229.5 mmThe RD-DPM8605 series offers wired and wireless variants as 1 MP handheld code readers engineered with advanced code reading algorithms for exceptional DPM decoding capability. Both models efficiently scan 1D and 2D codes (including QR Code, Data Matrix, and low-contrast symbols) and deliver rapid output via direct lighting and diffused reflection lighting systems. Designed for industrial environments, they feature IP65 protection, 2.8m drop resistance, and support TCP Client, FTP, and Profinet protocols. The wireless variant adds Bluetooth connectivity and a 3150mAh battery for 8-hour operation, ideal for automotive, semiconductor, and logistics applications.
Adopts code reading algorithm to provide superior decoding capability.
Ensures robustness for reading codes with spots, defects, and low contrast radio.
Supports continuous code reading and batch code reading to enhance code reading efficiency.
Compatible with multiple communication protocols, including TCP Client, Serial, FTP, and Profinet.
Features IP65 protection and 2.8m drop resistance for industrial durability.
|
Parameters/Model
|
RD-DPM8605 - U | RD-DPM8605 - LR |
|
1 MP Handheld Code Reader
|
||
|
Performance parameter
|
||
|
Light source
|
Direct: white LED; diffused reflection: red LED; Cross laser aiming
|
|
|
Symbologies
|
1D: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE
2D: QR Code, Data Matrix
|
|
|
Sensor type
|
CMOS,global shutter
|
|
|
Resolution
|
1280*800
|
|
|
Pixel size
|
3 µm × 3 µm
|
|
|
Focal length
|
6.7mm
|
|
|
Scan mode
|
Manual mode/Continuous mode
|
|
|
Detection angle
|
Elevation ± 60 °, Rotation 360 °, Yaw ± 60°
|
|
|
Field of view
|
31°（H) x 20° {V)
|
|
|
Min. accuracy
|
≥3mil
|
|
|
Max. frame rate
|
50FP/S
|
|
|
Depth of field
|
Code 39（３ mil）: 15 ~ 60 mm
|
|
|
Code 39（5 mil）: 5 ~ 80 mm
|
||
|
QR Code（5 mil）: 10 ~ 70 mm
|
||
|
Data Matrix（10 mil）: 0 ~ 110 mm
|
||
|
Prompt method
|
Buzzer, LED, Buzzer
|
|
|
Symbol contrast
|
≥20%
|
|
|
Ambient illumination
|
0 ~ 100000 lux
|
|
|
Error rate
|
1/5million
|
|
|
Communication protocol
|
SmartSDK, USB（HID/CDC）
|
SmartSDK, TCP Client, FTP, HTTP,
TCP Server, MELSEC/SLMP, Profinet,
Ethernet/IP, ModBus, UDP, Fins, Serial
|
|
Physical parameter
|
||
|
Weight
|
460g
|
|
|
Size
|
73.4 mm × 104 mm × 229.5 mm,
|
|
|
Material
|
ABS+PC+TPU
|
|
|
Cable
|
2meters
|
|
|
IP grade
|
IP65
|
|
|
Environmental parameter
|
||
|
Working temperature
|
-20℃~50℃
|
|
|
Storage temperature
|
-30 °C ~ 70 °C
|
|
|
Humidity
|
5% ~ 95% RH (No condensation)
|
|
|
Shock resistance
|
Passed 2.8meters drop test
|
|
|
Electrical Parameter
|
||
|
Interface
|
USB2.0
|
Fast Ethernet（100 Mbit/s），RS-232
|
|
Power supply
|
12 ~ 24 VDC
|
|
|
Max. power consumption
|
6 W@24 VDC
|
|
| Parameters/Model |
RD-DPM8605 - B - U
|
RD-DPM8605 - B - LR |
|
1 MP Handheld Code Reader
|
||
|
Performance parameter
|
||
|
Light source
|
Direct: white LED; diffused reflection: red LED; Cross laser aiming
|
|
|
Decoding ability
|
1D: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE
2D: QR Code, Data Matrix
|
|
|
Sensor type
|
CMOS, global shutter
|
|
|
Resolution
|
1280*800
|
|
|
Scan mode
|
Manual mode/Continuous mode
|
|
|
Detection angle
|
Elevation ± 60 °, Rotation 360 °, Yaw ± 60°
|
|
|
Field of view
|
31°（H) x 20° {V)
|
|
|
Min. accuracy
|
≥3mil
|
|
|
Max. frame rate
|
50FP/S
|
|
|
Depth of field
|
Code 39（5 mil）：5 ~ 80 mm
|
|
|
Prompt method
|
Buzzer, LED, Buzzer
|
|
|
Symbol contrast
|
≥20%
|
|
|
Error rate
|
1/5million
|
|
|
Wireless parmeter
|
||
|
Wireless
|
Bluetooth BLE Model
|
|
|
Transmission
|
100meters(open area)
|
|
|
Pairing mode
|
one-to-one
|
|
|
protocol Communication
|
SmartSDK, USB（HID/CDC）
|
SmartSDK, TCP Client, FTP, HTTP,
TCP, Server, Profinet, MELSEC/SLMP,
Ethernet/IP, ModBus, UDP, Fins, Serial
|
|
Physical parameter
|
||
|
Weight
|
760g
|
|
|
Size
|
104mm*79mm*215mm; Base: 248mm*106mm*69mm
|
|
|
Material
|
ABS+PC +TPU
|
|
|
Cable
|
2 meters
|
|
|
IP GRADE
|
IP65
|
|
|
Environmental parameter
|
||
|
Working temperature
|
-10℃~60℃
|
|
|
Storage temperature
|
20℃~70℃
|
|
|
Humidity
|
5% ~ 95% RH (No condensation)
|
|
|
Shock resistance
|
Passed 2.8meters drop test
|
|
|
Electrical Parameter
|
||
|
Voltage
|
3.8VDC（Battery-powered）
|
|
|
Current
|
Working 270mA
|
|
|
Battery capacity
|
3150mAh
|
|
|
Charging time
|
4H about
|
|
|
Working hours
|
8Habout
|
|
|
Charging method
|
Charging base
|
|
