Model NO. :
F682RPrint mode :
Thermal Transfer/Direct ThermalResolution :
203/300 dpiPrinting speed :
203mm(8")/second；152mm(6")/secondPrint width :
104 mm(4.09")Print length :
400 mm(1,000") / 11,430 mm(450")Sensor form :
Print head displacement detection, carbon tape detection, label detection(movable), black label detection (movable), stripper label detection

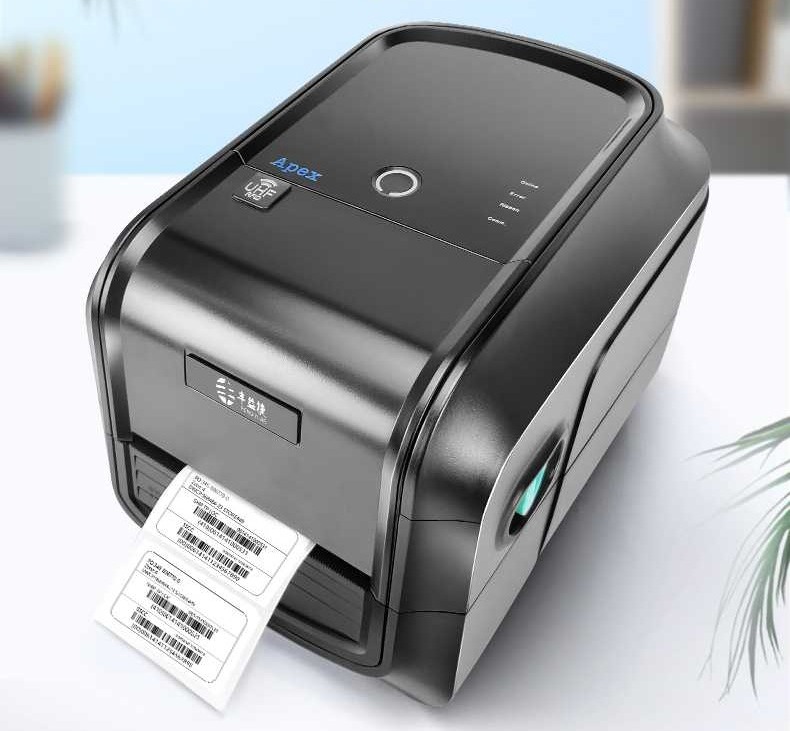

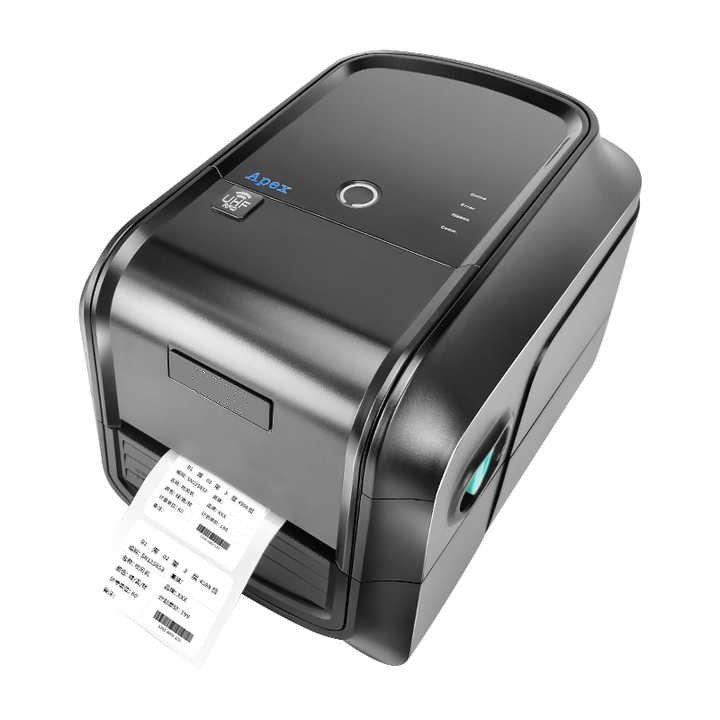

Desktop UHF RFID Label Printer
Introducing the RFID Desktop Label Printer, designed for ultra-high frequency electronic label printing. It supports readable and writable labels, making it ideal for various applications. This printer ensures high efficiency and zero error rate, perfect for businesses needing reliable and precise labeling solutions. Key features include batch reading and writing, accurate data, and easy secondary development. Choose this printer for seamless integration and enhanced productivity.

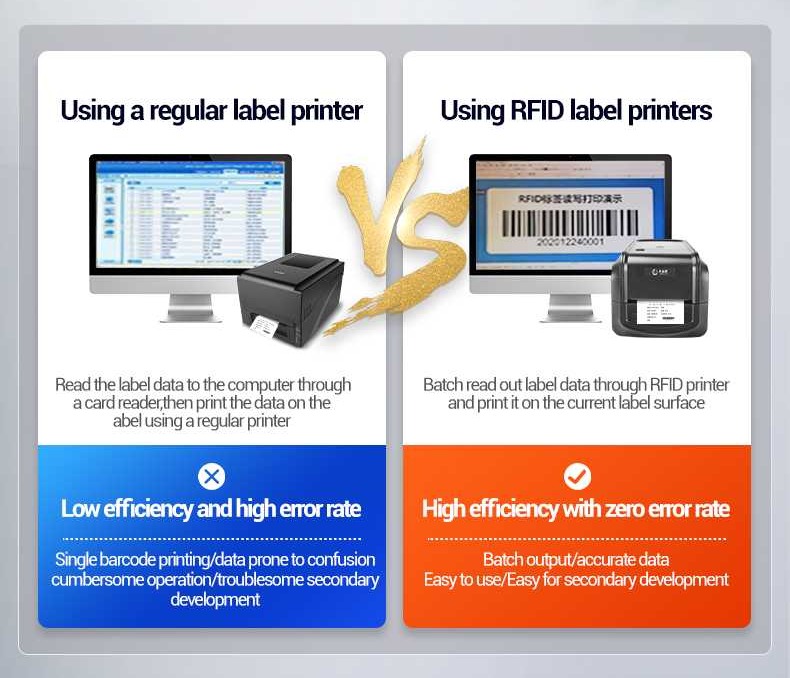

Why Choose RFID Over Traditional Printers?
Discover the advantages of using an RFID label printer over a regular label printer. RFID label printers offer high efficiency and zero error rate, ensuring batch output and accurate data. They are easy to use and support secondary development, making them a cost-effective and time-saving solution. With batch reading and writing capabilities, RFID label printers streamline operations and enhance accuracy.

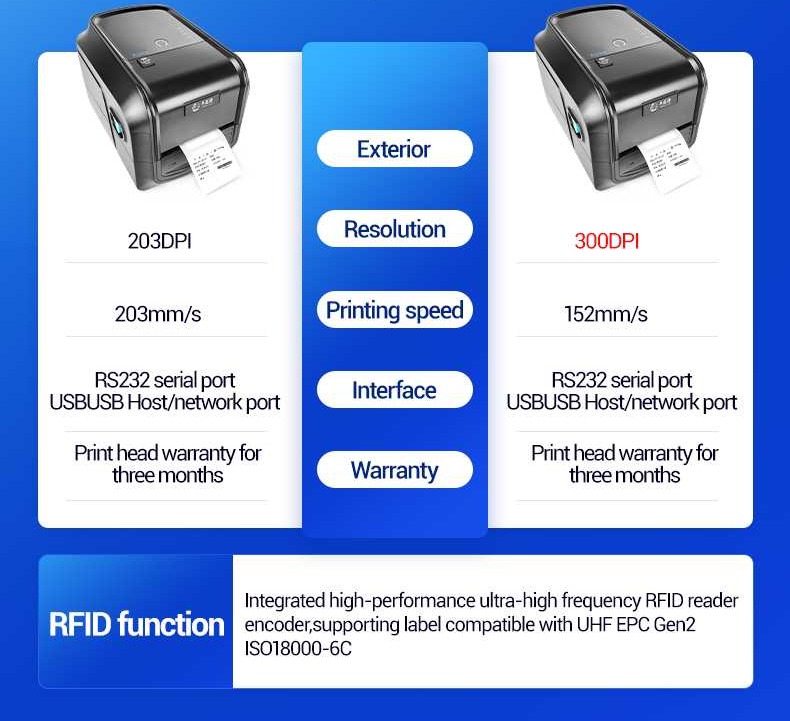

High-Performance Specifications
Compare the key specifications of our RFID label printers. Choose from 203DPI or 300DPI resolution, with printing speeds of 203mm/s or 152mm/s. Both models feature RS232 serial port, USB host/network port, and a three-month print head warranty. The integrated high-performance ultra-high frequency RFID reader encoder supports labels compatible with UHF EPC Gen2 ISO18000-6C, ensuring versatile and reliable performance.

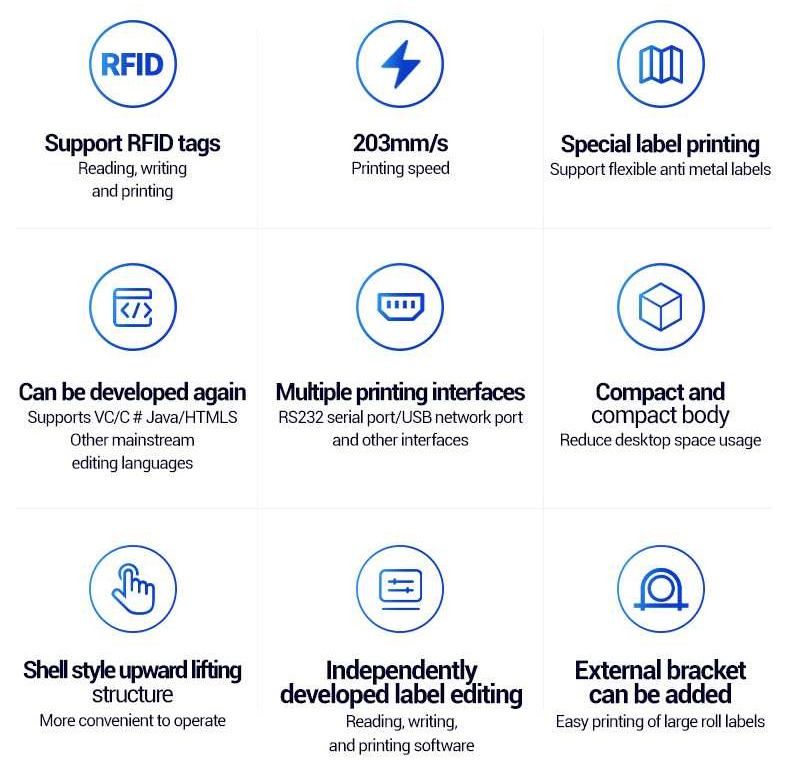

Key Advantages
Explore the top advantages of our RFID label printer. It supports RFID tags for reading, writing, and printing, with a printing speed of 203mm/s. The printer features multiple interfaces, a compact and compact body, and a shell style upward lifting structure for easy operation. It also includes independently developed label editing software and an external bracket for convenient large roll label printing. These features make it a versatile and user-friendly solution for various labeling needs.

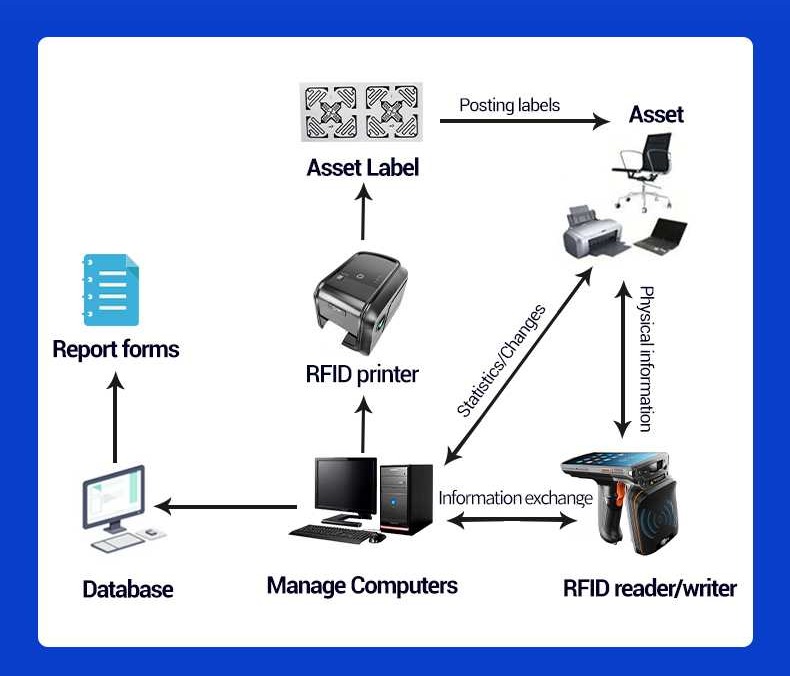

RFID for Asset Management
Enhance your fixed asset management with our RFID label printer. It enables efficient posting of asset labels, ensuring seamless information exchange between the printer, manage computers, and RFID reader/writer. The system supports report forms and database integration, providing accurate physical information tracking. This comprehensive solution streamlines asset management, making it easy and efficient to track and manage your assets.
RFlD application scenarios
Special app lication labels
Used in industries such as vehicles & tires,warehousing & logistics,washing,library,et
Product parameters
| model | F682R | F683R |
| print mode | Thernal Transfer/Direct Themal | |
| Resolurtion | 203dpi | 300dpi |
| Printing speed | 203mm(8")/second | 152mm(6")/second |
| Print width | 104 mm(4.09") | 104 mm(4.09") |
| Print length | 400 mm(1,000") | 11,430 mm(450") |
| Sensor form | Print head displacement detection, carbon tape detection, label detection(mavable), black label detection (movable), stmpper label detection | |
| Interface | USB 2.0 High Speed 480Mbps, used for connecting to the upper computer andcalling USB Host 2.0. lt can be connected to an external scanner or keyboardEthernet interface 10/100Mbps RS-232 serial port (optional) with built-in Bluetooth4.0 (optional) and built-in WiFi (optional) | |
| Power | External universal switch power supply Input: AC 100-240V,2.5A,50-60Hz, 0utput DC 24V 2.5A.60W | |
| Built in fonts | 8 alpha numeric lattice fontsTrue type font engine (requires downloading vector font library files) | |
| Windows | 6,8,10.12.14.18,24.30,16X26 and OCRA&B | |
| Raster font | can rotate 90 °, 180 °, 270 °, and single characters can rotate 90 °, 180 °, and 270can be horizontally and verticaliy enlarged by 8 times | |
| Vector font | Vector fonts can rotate 90°.180°.270° | |
| Asian fonts | Asian fonts can rotate 90° 180° 270° and can be enlarged by 8x horizontallyand vertically | |
| Charagter encoding |
CODEPAGE437850.851852.855.857860.861862863.865.866.869 737WINDOWS1250,1251125212531254,1255,1257Unicode(UTF8.UTF16) |
|
| Graphics Processing |
Supports monochromatic BMP and PCX qraphics formats; Other graphic formats can be downloaded through software |
|
| Work environment | 5°C to 40°C (41°F to 104°F) | |
| deposit | -20°C to 50°C(-4°F to 122°F) | |
| Humidity environment | 30-85% relative humidity, no condensation | |
| deposit | 10-90% relative humidity, no condensation | |
| Safety certification | CCC | |

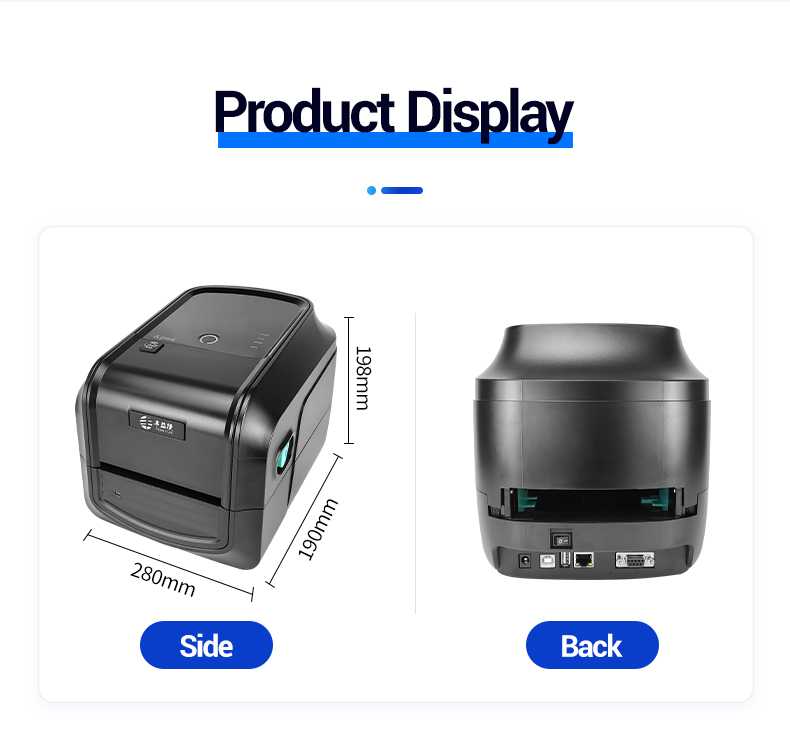

| Appearance dimensions | 280mm（L)*190mm（W）*198.3mm（H） | |
